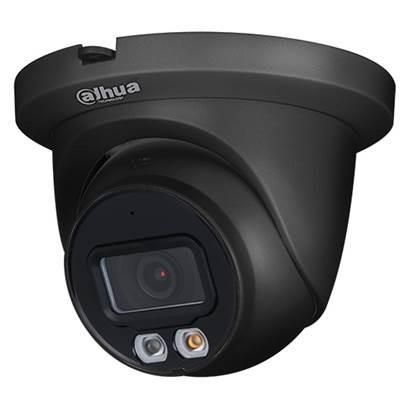

NET CAMERA 8MP IR EYEBALL/HDW2849TM-S-IL-0280B-B DAHUA

8MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.

Description

8MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2849TM-S-IL

Model

DHI-IPC-HDW2849TM-S-IL-0280B-B

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

8 Mega Pixel

IR Illumination

Yes

Sensor size

1/2.7

Microphone

Built-in

Lens Mount

M22

Min. Illumination

0.0008 Lux

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

Basic: 2.6 W (12 VDC); 3.3 W (PoE)

Power consumption

5.9 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +55 °C

Colour

Black

Dimensions

99.1 mm × Φ121.9 mm

Units per Shipping Box

1

Shipping Box Depth

14 cm

Shipping Box Height

14 cm

Shipping Box Weight

0.651 kg

Shipping Box Width

11.5 cm

Unit Calculated Volume

0.002254 cubm

Product Net Weight

0.48 kg

Unit Calculated Weight

0.651 kg

Unit Box Width

0.115

Unit Box Length

0.14

Unit Box Height

0.14

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|IR Illumination|Sensor size 1/2.7|Microphone Built-in|Lens Mount M22|Min. Illumination 0.0008 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements Basic: 2.6 W (12 VDC); 3.3 W (PoE)|Environment Outdoor|Operating temperature range –40 °C to +55 °C|Colour Black|Dimensions 99.1 mm × Φ121.9 mm

Category Code

FNC
