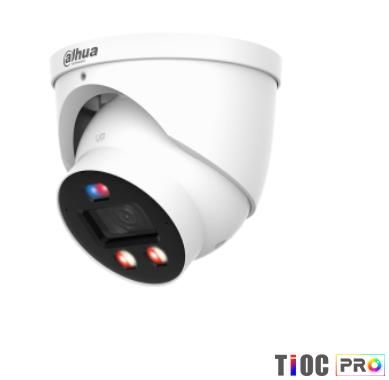

NET CAMERA 8MP IR EYEBALL/HDW3849H-ASPV0280B-PRO DAHUA

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.

Description

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3849H-AS-PV-PRO

Model

HDW3849H-ASPV0280B-PRO

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

8 Mega Pixel

IR Illumination

Yes

Sensor size

1/1.8

Lens Mount

M16

Min. Illumination

0.0004 Lux

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Supports card capacities up to

512GB

Power options

12V/PoE

Power supply requirements

12 VDC; PoE

Power consumption

10 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Dimensions

Φ122.0 mm × 116.1 mm

Units per Shipping Box

1

Shipping Box Depth

16 cm

Shipping Box Height

14 cm

Shipping Box Weight

1 kg

Shipping Box Width

16 cm

Unit Calculated Volume

0.003584 cubm

Product Net Weight

0.8 kg

Unit Calculated Weight

1 kg

Unit Box Width

0.16

Unit Box Length

0.16

Unit Box Height

0.14

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|IR Illumination|Sensor size 1/1.8|Lens Mount M16|Min. Illumination 0.0004 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC; PoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Dimensions Φ122.0 mm × 116.1 mm

Category Code

FNC
