NET CAMERA 8MP IR EYEBALL/IPC-HDW5842T-ZE-2712-S3 DAHUA

IPC-HDW5842T-ZE

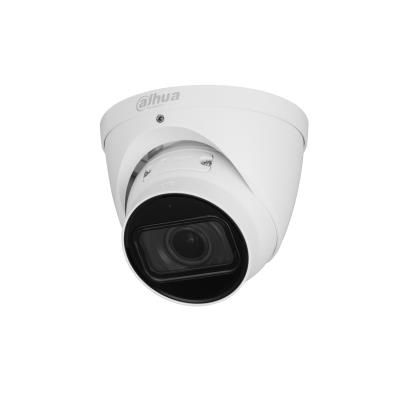

8MP IR Vari-focal Eyeball WizMind Network Camera

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.

Description

IPC-HDW5842T-ZE

8MP IR Vari-focal Eyeball WizMind Network Camera

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/8MP/IPC-HDW5842T-ZE=S3

Model

IPC-HDW5842T-ZE-2712-S3

Camera design

Eyeball

Network Camera Type

Fixed/HDTV/Megapixel

Pixel Resolution

8 Mega Pixel

Focal Length

2.7 mm–12 mm

IR Illumination

Yes

Sensor size

1/1.8 CMOS

Microphone

Built-in

Min. Illumination

0.0004 Lux

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

512GB

Power supply requirements

12 VDC/PoE (802.3af)/ePoE

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Colour

White

Dimensions

108.3 mm × Φ122 mm

Units per Shipping Box

1

Shipping Box Depth

15.5 cm

Shipping Box Height

13.5 cm

Shipping Box Weight

0.93 kg

Shipping Box Width

15.5 cm

Unit Calculated Volume

0.003243 cubm

Product Net Weight

0.7 kg

Unit Calculated Weight

0.93 kg

CnCode

85258900

Unit Box Width

0.155

Unit Box Length

0.155

Unit Box Height

0.135

Full Description Line

Type Fixed/HDTV/Megapixel|Pixel Resolution 8 Mega Pixel|Focal Length 2.7 mm–12 mm|IR Illumination|Sensor size 1/1.8 CMOS|Microphone Built-in|Min. Illumination 0.0004 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 512GB|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions 108.3 mm × Φ122 mm

Category Code

FNC
