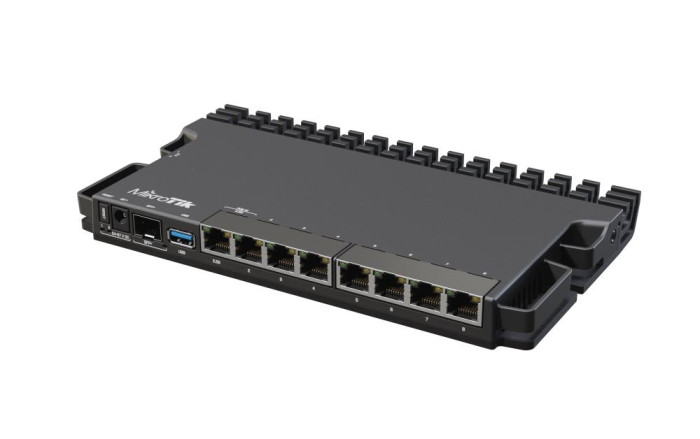

NET ROUTER 1000M 7PORT/RB5009UG+S+IN MIKROTIK

RB5009UG+S+IN

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.


Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!


The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

Description

RB5009UG+S+IN

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.


Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!


The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

Vendor Homepage

mikrotik.com/product/rb5009ug_s_in

Product model code

RB5009UG+S+IN

Network Device Type

Router

1GbE

7

2.5GbE

1

SFP+

1

USB 3.0

1

Memory (RAM)

1GB

Flash memory capacity

1GB

Power supply requirements

DC jack, PoE-IN, 2-pin terminal

Power consumption

20 Watts

Operating temperature range

-40°C to +60°C

Dimensions

220 x 21.5 x 125 mm

Units per Shipping Box

1

Shipping Box Depth

31 cm

Shipping Box Height

5 cm

Shipping Box Weight

0.78 kg

Shipping Box Width

13 cm

Unit Calculated Volume

0.002015 cubm

Product Net Weight

0.6 kg

Unit Calculated Weight

0.78 kg

Unit Box Width

0.13

Unit Box Length

0.31

Unit Box Height

0.05

Full Description Line

RB5009UG+S+IN|Network Device Type Router|1x2.5GbE|1xSFP+|7x1GbE|1xUSB 3.0|Memory (RAM) 1GB|Flash memory capacity 1GB|Power supply requirements DC jack, PoE-IN, 2-pin terminal|Power consumption 20 Watts|Operating temperature range -40°C to +60°C|Dimensions 220 x 21.5 x 125 mm

Category Code

ROU
