NET ROUTER IOT GATEWAY/RB924I-2ND-BT5&BG77 MIKROTIK

KNOT

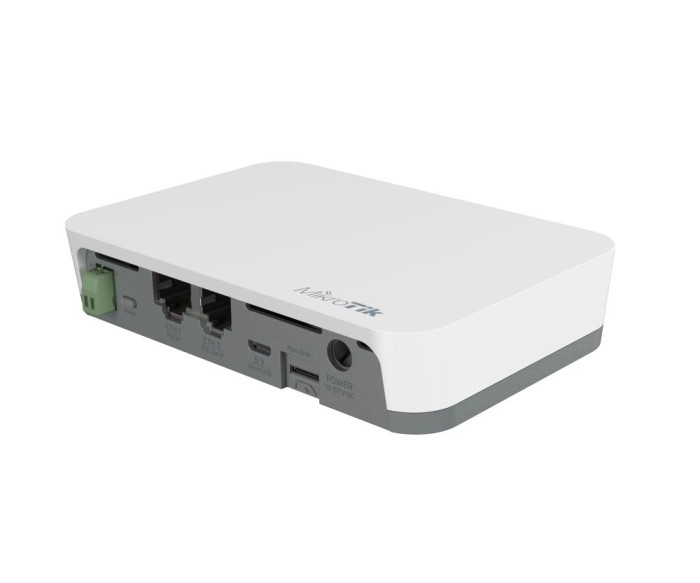

IoT Gateway for the most versatile and cost-effective setups


The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.


KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.


You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.


It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!


KNOT features so many protocol support and connectivity options:


2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!

Description

KNOT

IoT Gateway for the most versatile and cost-effective setups


The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.


KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.


You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.


It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!


KNOT features so many protocol support and connectivity options:


2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!

Vendor Homepage

mikrotik.com/product/knot#fndtn-gallery

Category Code

ROU

Unit Box Height

0.05

Unit Box Length

0.235

Unit Box Width

0.11

10Base-T / 100Base-TX

2

Наличие USB 2.0

1

Код модели продукта

KNOT // RB924i-2nD-BT5&BG77

Тип устройства

Gateway

Процессор

QCA9531

Оперативная память

16 МБ

Требования к электропитанию

PoE-IN, DC jack, MicroUSB

Потребляемая мощность

5 Вт

Диапазон рабочих температур

-40°C to 70°C

Размер

122 x 87 x 26 mm

Количество в транспортной упаковке

1

Объем

0.001293 м3

Вес без упаковки

0.35 кг

Вес в упаковке

0.44 кг
