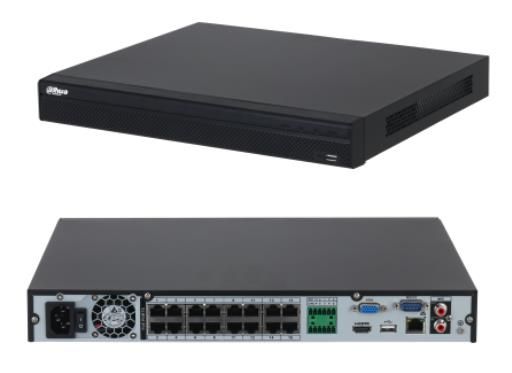

NET VIDEO RECORDER 16CH 16POE/NVR4216-16P-4KS3 DAHUA

> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.

Description

> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/2HDD/NVR4216-16P-4KS3

Model

DHI-NVR4216-16P-4KS3

Number of Channels

16

Desktop/pedestal

Yes

Rack

Yes

CPU

Industrial-grade processor

SATA

Yes

15pin D-sub

1

Alarm In

4

Alarm Out

2

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

RS232

1

USB 2.0

2

PoE ports

16

Power supply requirements

100–240 VAC, 50/60 Hz

Dimensions

375.0 × 327.9 × 53.0 mm

Operating temperature range

–10 °C to +55 °C

Units per Shipping Box

1

Shipping Box Depth

45 cm

Shipping Box Height

42 cm

Shipping Box Weight

3.8 kg

Shipping Box Width

14 cm

Unit Calculated Volume

0.02646 cubm

Product Net Weight

2.6 kg

Unit Calculated Weight

3.8 kg

Unit Box Width

0.14

Unit Box Length

0.45

Unit Box Height

0.42

Full Description Line

Channels 16|Desktop/pedestal|Rack|CPU Industrial-grade processor|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 100–240 VAC, 50/60 Hz|Dim. 375.0 × 327.9 × 53.0 mm|Temp. range –10 °C to +55 °C

Category Code

NVR
