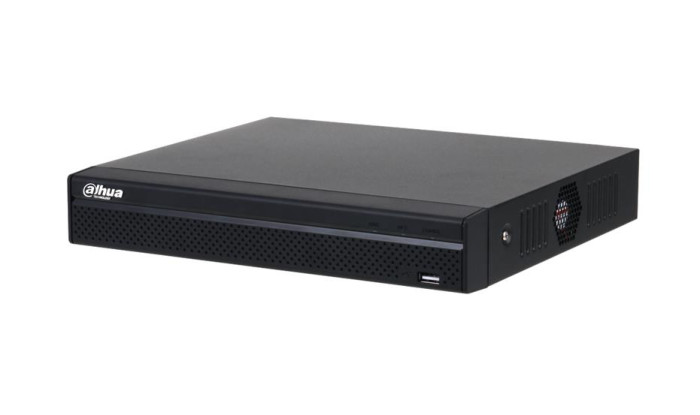

NET VIDEO RECORDER 16CH/NVR4116HS-4KS3 DAHUA

16CH Compact 1U 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.

Description

16CH Compact 1U 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4116HS-4KS3

Model

NVR4116HS-4KS3

Number of Channels

16

Number of drives/bays

1

Desktop/pedestal

Yes

Rack

Yes

CPU

Industrial-grade processor

SATA

Yes

Integrated LAN

Gigabit

15pin D-sub

1

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

USB 2.0

2

Power supply requirements

12 VDC, 2 A

Power consumption

10 Watts

Dimensions

260.0 × 232.5 × 47.6 mm

Operating temperature range

–10 °C to +55 °C

Units per Shipping Box

1

Shipping Box Depth

33.5 cm

Shipping Box Height

31 cm

Shipping Box Weight

1.4 kg

Shipping Box Width

8.5 cm

Unit Calculated Volume

0.008827 cubm

Product Net Weight

0.81 kg

Unit Calculated Weight

1.4 kg

Unit Box Width

0.085

Unit Box Length

0.335

Unit Box Height

0.31

Full Description Line

Channels 16|Drives/bays 1|Desktop/pedestal|Rack|CPU Industrial-grade processor|SATA|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 2 A|Power consumption 10 Watts|Dim. 260.0 × 232.5 × 47.6 mm|Temp. range –10 °C to +55 °C

Category Code

NVR
