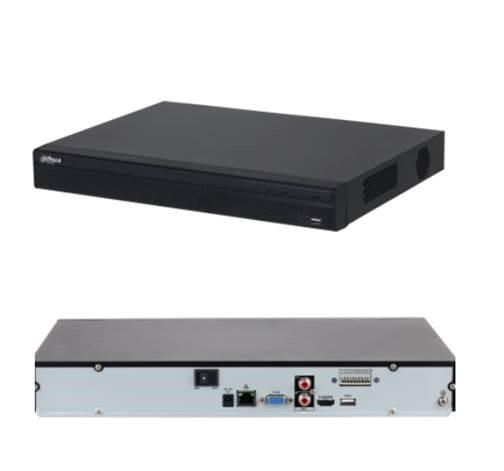

NET VIDEO RECORDER 16CH/NVR4216-4KS3 DAHUA

16CH 1U 2HDDs Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.

Description

16CH 1U 2HDDs Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/2HDD/NVR4216-4KS3

Model

DHI-NVR4216-4KS3

Number of Channels

16

Number of drives/bays

2

Rack 1U

Yes

CPU

Industrial-grade processor

SATA

Yes

15pin D-sub

1

Alarm In

4

Alarm Out

2

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

USB 2.0

2

Power supply requirements

12 VDC, 4 A

Power consumption

10 Watts

Dimensions

375.0 × 282.9 × 53.0 mm

Operating temperature range

–10 °C to +55 °C

Colour

Black

Units per Shipping Box

1

Shipping Box Depth

14 cm

Shipping Box Height

36 cm

Shipping Box Weight

2.82 kg

Shipping Box Width

43 cm

Unit Calculated Volume

0.02167 cubm

Product Net Weight

1.49 kg

Unit Calculated Weight

2.82 kg

Unit Box Width

0.43

Unit Box Length

0.14

Unit Box Height

0.36

Full Description Line

Channels 16|Drives/bays 2|Rack 1U|CPU Industrial-grade processor|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 12 VDC, 4 A|Power consumption 10 Watts|Dim. 375.0 × 282.9 × 53.0 mm|Temp. range –10 °C to +55 °C|Colour Black

Category Code

NVR
