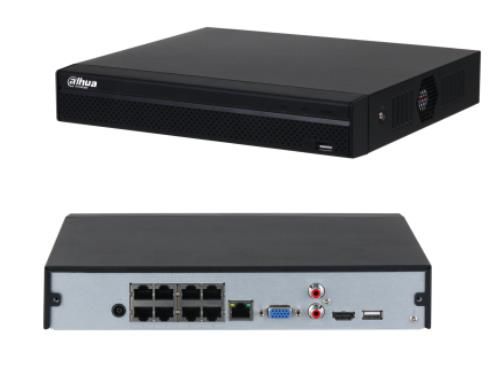

NET VIDEO RECORDER 8CH 8POE/NVR4108HS-8P-4KS3 DAHUA

8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.

Description

8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4108HS-8P-4KS3

Model

DHI-NVR4108HS-8P-4KS3

Number of Channels

8

Desktop/pedestal

Yes

Rack

Yes

CPU

Industrial-grade

SATA

Yes

15pin D-sub

1

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

USB 2.0

2

PoE ports

8

Power supply requirements

53 VDC, 1.81 A

Dimensions

260.0 × 232.5 × 47.6 mm

Operating temperature range

–10 °C to +55 °C

Units per Shipping Box

1

Shipping Box Depth

37 cm

Shipping Box Height

30.5 cm

Shipping Box Weight

2.1 kg

Shipping Box Width

11.5 cm

Unit Calculated Volume

0.01298 cubm

Product Net Weight

0.92 kg

Unit Calculated Weight

2.1 kg

CnCode

85219000

Unit Box Width

0.115

Unit Box Length

0.37

Unit Box Height

0.305

Full Description Line

Channels 8|Desktop/pedestal|Rack|CPU Industrial-grade|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 53 VDC, 1.81 A|Dim. 260.0 × 232.5 × 47.6 mm|Temp. range –10 °C to +55 °C

Category Code

NVR
