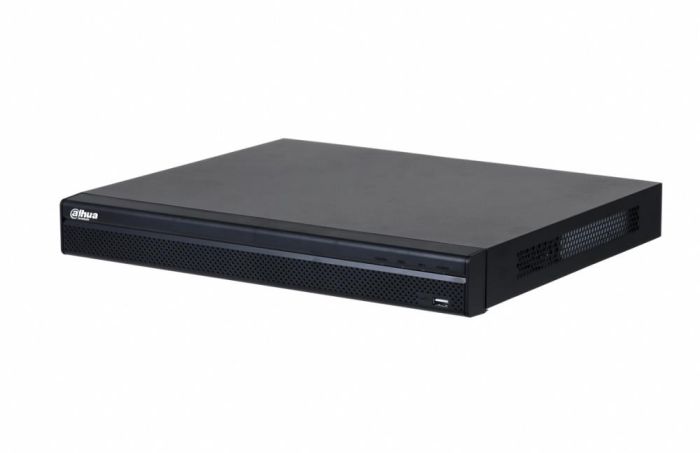

NET VIDEO RECORDER 8CH/NVR4208-4KS2/L DAHUA

8 IP channel max, up to 8 MP resolution

160Mbps record rate, Smart H.265/H.265/Smart H.264/H.264/MJPE encoding

VGA/HDMI up to 4K output

Decoding Capability: 8 × 1080p@30 fps

2 SATA III ports, up to 10 TB for a single HDD, 10/100M/1G LAN

No front panel control, 1/1 Audio I/O, 4/2 Alarm I/O, 2 USB

Desktop mounted chassis (black), mouse included

AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD

Free IP monitoring software available

ONVIF(profile T/S/G); CGI; SDK

Other brands IP cameras supported by ONVIF; RTSP.

Description

8 IP channel max, up to 8 MP resolution

160Mbps record rate, Smart H.265/H.265/Smart H.264/H.264/MJPE encoding

VGA/HDMI up to 4K output

Decoding Capability: 8 × 1080p@30 fps

2 SATA III ports, up to 10 TB for a single HDD, 10/100M/1G LAN

No front panel control, 1/1 Audio I/O, 4/2 Alarm I/O, 2 USB

Desktop mounted chassis (black), mouse included

AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD

Free IP monitoring software available

ONVIF(profile T/S/G); CGI; SDK

Other brands IP cameras supported by ONVIF; RTSP.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4/L-Series/2HDD/NVR4208-4KS2/L

Number of Channels

8

Number of HDD

2

Rack 1U

Yes

SATA

Yes

15pin D-sub

1

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

USB 2.0

2

Power supply requirements

DC12 V, 4 A

Power consumption

10 Watts

Dimensions

375 mm × 282.4 mm × 53 mm

Operating temperature range

–10 °C to +55 °C

Units per Shipping Box

1

Shipping Box Depth

43.5 cm

Shipping Box Height

36.5 cm

Shipping Box Weight

2.73 kg

Shipping Box Width

14 cm

Unit Calculated Volume

0.02223 cubm

Product Net Weight

1.51 kg

Unit Calculated Weight

2.73 kg

Unit Box Width

0.14

Unit Box Length

0.435

Unit Box Height

0.365

Full Description Line

Channels 8|Rack 1U|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements DC12 V, 4 A|Power consumption 10 Watts|Dim. 375 mm × 282.4 mm × 53 mm|Temp. range –10 °C to +55 °C

Category Code

NVR
