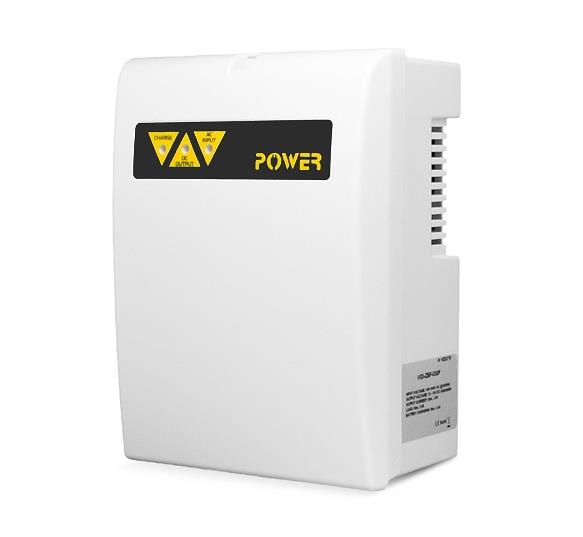

POWER SUPPLY 12VDC 1.5A/VIDI-ZBF-015P GENWAY

VIDI-ZBF-015P 1.5A buffer power supply. The device is characterized by very compact dimensions, but despite this we can fit a 7Ah or 7.2Ah battery inside. The power supply has lights informing about its operating status. The housing is made of plastic and equipped with ventilation holes and brackets for wall mounting. Input voltage: 190-240V AC 50/60Hz. Output voltage when powered from the mains: 13.8V DC. Output voltage when powered from a battery: 10.0-12.5V DC. Total power: 32W. Output current: 1.5A. Battery charging current: 0.8A. Indicator lights: AC input, DC output, Charging. overvoltage protection, short circuit protection, battery overcharge protection, overdischarge protection. Battery not included.


Description

VIDI-ZBF-015P 1.5A buffer power supply. The device is characterized by very compact dimensions, but despite this we can fit a 7Ah or 7.2Ah battery inside. The power supply has lights informing about its operating status. The housing is made of plastic and equipped with ventilation holes and brackets for wall mounting. Input voltage: 190-240V AC 50/60Hz. Output voltage when powered from the mains: 13.8V DC. Output voltage when powered from a battery: 10.0-12.5V DC. Total power: 32W. Output current: 1.5A. Battery charging current: 0.8A. Indicator lights: AC input, DC output, Charging. overvoltage protection, short circuit protection, battery overcharge protection, overdischarge protection. Battery not included.


Vendor Homepage

www.genway.pl/vidi-zbf-015p-zasilacz-buforowy-13-8v-1-5a-7ah.html

Units per Shipping Box

1

Shipping Box Depth

23 cm

Shipping Box Height

10.5 cm

Shipping Box Weight

0.62 kg

Shipping Box Width

18.5 cm

Unit Calculated Volume

0.004468 cubm

Product Net Weight

0.3 kg

Unit Calculated Weight

0.62 kg

Category Code

SPS
