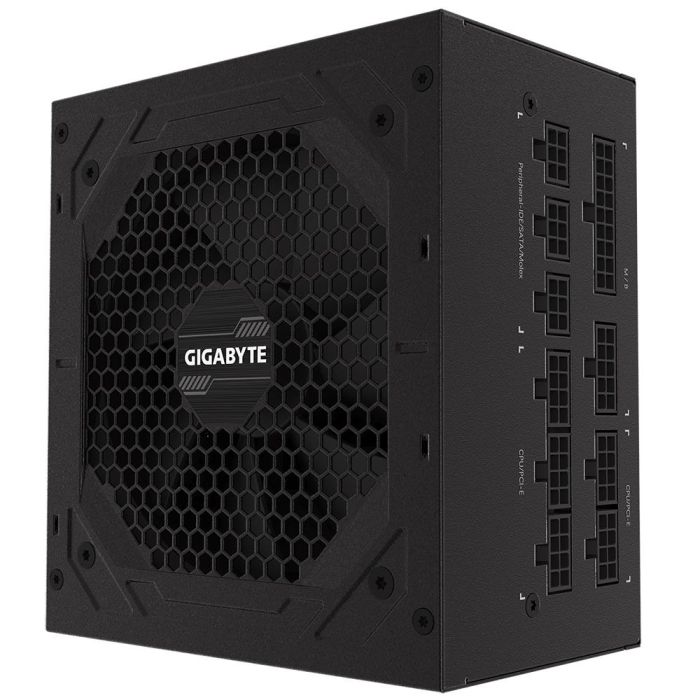

Power Supply|GIGABYTE|GP-P750GM|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-P750GM

GIGABYTE P750GM

Power Supply


+ 80 PLUS Gold certified
+ Fully modular design
+ 120mm Smart Hydraulic Bearing (HYB) Fan
+ Main Japanese capacitors
+ Powerful single +12V rail
+ OVP/OPP/SCP/UVP/OCP/OTP protection
+ Compact size


Connectors:
+ ATX/MB 20+4 Pin x 1
+ CPU/EPS 4+4 Pin x 2
+ PCI-e 6+2 Pin x 4
+ SATA x 8
+ 4 Pin Peripheral x 3 + 4-Pin floppy x 1


FULLY MODULAR DESIGN

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.


80 PLUS GOLD CERTIFIED

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.


HIGH QUALITY JAPANESE CAPACITORS

The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.


120MM SMART HYDRAULIC BEARING (HYB) FAN

The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

Description

GIGABYTE P750GM

Power Supply


+ 80 PLUS Gold certified
+ Fully modular design
+ 120mm Smart Hydraulic Bearing (HYB) Fan
+ Main Japanese capacitors
+ Powerful single +12V rail
+ OVP/OPP/SCP/UVP/OCP/OTP protection
+ Compact size


Connectors:
+ ATX/MB 20+4 Pin x 1
+ CPU/EPS 4+4 Pin x 2
+ PCI-e 6+2 Pin x 4
+ SATA x 8
+ 4 Pin Peripheral x 3 + 4-Pin floppy x 1


FULLY MODULAR DESIGN

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.


80 PLUS GOLD CERTIFIED

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.


HIGH QUALITY JAPANESE CAPACITORS

The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.


120MM SMART HYDRAULIC BEARING (HYB) FAN

The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

Vendor Homepage

www.gigabyte.com/Power-Supply/GP-P750GM#kf

Model name

GP-P750GM

PSU

ATX 2.31

PSU Output Power

750 Watts

Cooling System

12cm fan

Efficiency

80 PLUS GOLD

PFC

Active

MTBF

100000 hours

Colour

Black

Dimensions

1‎50 x 140 x 86 mm

Units per Shipping Box

5

Shipping Box Depth

61 cm

Shipping Box Height

29 cm

Shipping Box Weight

13.16 kg

Shipping Box Width

23 cm

Unit Calculated Volume

0.008137 cubm

Product Net Weight

2 kg

Unit Calculated Weight

2.63 kg

Unit Box Width

0.12

Unit Box Length

0.255

Unit Box Height

0.21

Full Description Line

GP-P750GM|ATX 2.31|750 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black

Category Code

PSU
