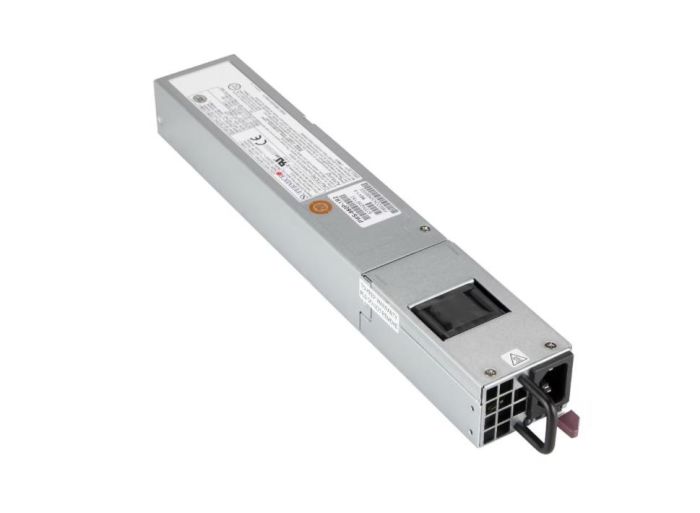

SERVER ACC PSU 860W REDUNDANT/PWS-860P-1R2 SUPERMICRO

The Supermicro PWS-860P-1R2 is an 80 Plus Platinum level redundant power supply capable of continuously supplying 800W/860W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge output to interface with a 2x25 card edge connector. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 250,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

Description

The Supermicro PWS-860P-1R2 is an 80 Plus Platinum level redundant power supply capable of continuously supplying 800W/860W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge output to interface with a 2x25 card edge connector. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 250,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

Vendor Homepage

https://store.supermicro.com/800w-1u-pws-860p-1r2.html

Model

PWS-860P-1R2

Model name

PWS-860P-1R2

Case Type

1U rack

PSU

Redundant-Power-Capable

PSU Output Power

860 Watts

Efficiency

80 PLUS PLATINIUM

Dimensions

54.5 x 322 x 40.25mm

Units per Shipping Box

1

Shipping Box Depth

40 cm

Shipping Box Height

12 cm

Shipping Box Weight

1.12 kg

Shipping Box Width

13 cm

Unit Calculated Volume

0.00624 cubm

Product Net Weight

1.12 kg

Unit Calculated Weight

1.12 kg

Unit Box Width

0.13

Unit Box Length

0.4

Unit Box Height

0.12

Full Description Line

Model name PWS-860P-1R2|Case Type 1U rack|PSU Redundant-Power-Capable|PSU Output Power 860 Watts|Efficiency 80 PLUS PLATINIUM|Dimensions 54.5 x 322 x 40.25mm

Category Code

SPU
