SSD ACC ADAPTER PCIE NVME/M.2/SP&LP PCEM2-N AXAGON

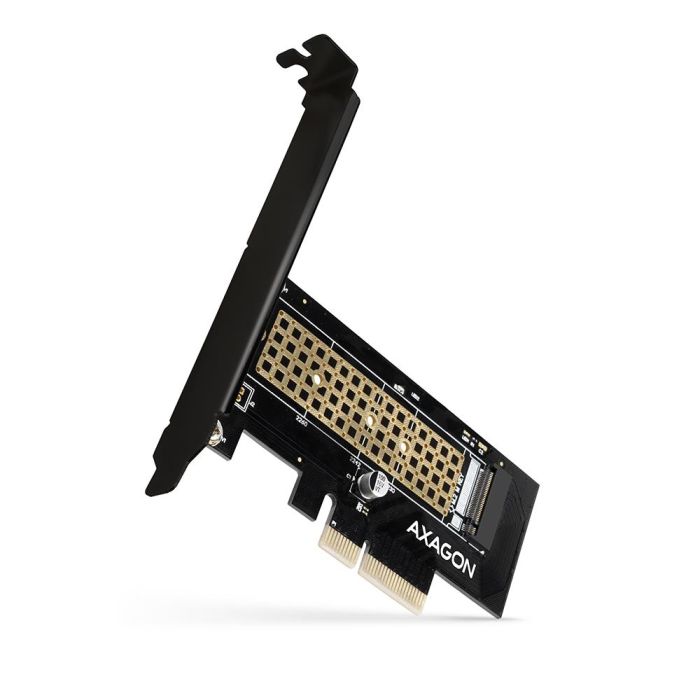

PCEM2-N PCIe NVMe M.2 adapter


The PCI-Express x4 internal adapter for connecting an NVMe M.2 SSD disk to a computer.


The AXAGON PCEM2-N internal adapter allows connecting an M.2 SSD disk to a desktop computer using a PCI-Express bus.


High-quality construction, compact size, and well thought-out design make the adapter an ideal choice for upgrading a desktop computer that is not equipped with an M.2 slot.


The adapter supports the use of NVMe (PCI-Express) M.2 SSD disks, both one-sided and double-sided ones. The reduction does not have a limit of SSD disk capacities and M.2 cards with a size of up to 22x80 mm can be used.


Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved.


The thermally conductive pad and coppered vents help to remove better heat generated during the operation of M.2 SSD disks. The LED indication indicate either connection or data transfer in the M.2 slot. The package also contains a low profile bracket for mounting the adapter into low profile cases.

Description

PCEM2-N PCIe NVMe M.2 adapter


The PCI-Express x4 internal adapter for connecting an NVMe M.2 SSD disk to a computer.


The AXAGON PCEM2-N internal adapter allows connecting an M.2 SSD disk to a desktop computer using a PCI-Express bus.


High-quality construction, compact size, and well thought-out design make the adapter an ideal choice for upgrading a desktop computer that is not equipped with an M.2 slot.


The adapter supports the use of NVMe (PCI-Express) M.2 SSD disks, both one-sided and double-sided ones. The reduction does not have a limit of SSD disk capacities and M.2 cards with a size of up to 22x80 mm can be used.


Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved.


The thermally conductive pad and coppered vents help to remove better heat generated during the operation of M.2 SSD disks. The LED indication indicate either connection or data transfer in the M.2 slot. The package also contains a low profile bracket for mounting the adapter into low profile cases.

Vendor Homepage

www.axagon.eu/en/produkty/pcem2-n?ami=204

Model

PCEM2-N

Form Factor

M.2

Included Accessories

• PCI-Express adapter with a standard bracket,• low profile bracket,• thermally conductive pad,• mounting material and a screwdriver

Dimensions

105 x 49 x 8 mm

Units per Shipping Box

1

Unit Calculated Volume

0.00068 cubm

Product Net Weight

0.032 kg

Unit Calculated Weight

0.098 kg

Full Description Line

Form Factor M.2|Included Accessories • PCI-Express adapter with a standard bracket,• low profile bracket,• thermally conductive pad,• mounting material and a screwdriver

Category Code

HDA
