Switch|DAHUA|CS4226-24ET-240|Desktop/pedestal|Rack 1U|24x10Base-T / 100Base-TX|2x10/100/1000BASE-T/SFP combo|2|26|PoE ports 24|240 Watts|CS4226-24ET-240

CS4226-24ET-240

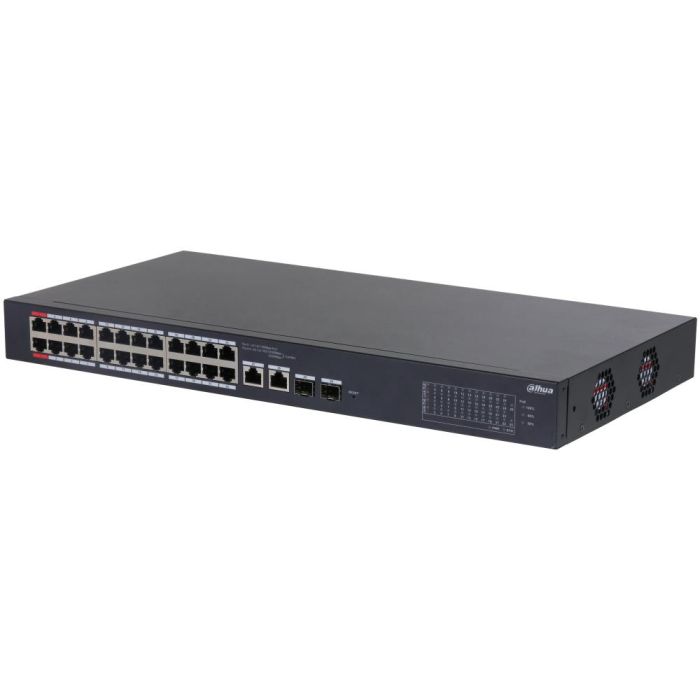

26-Port Cloud Managed Desktop Switch with 24-Port PoE (240 W)
> Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.

Description

CS4226-24ET-240


26-Port Cloud Managed Desktop Switch with 24-Port PoE (240 W)
> Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.

Vendor Homepage

transmission.dahuasecurity.com/en/product-list/Business/CloudManagementSolution/NetworkSwitch/CS4226-24ET-240

Model name

CS4226-24ET-240

Desktop/pedestal

Yes

Rack 1U

Yes

Primary port count

24

10/100/1000BASE-T/SFP combo

2

10Base-T / 100Base-TX

24

RJ45

26

SFP

2

PoE ports

24

PoE power budget

240 Watts

Switching capacity

8.8 Gbps

Forwarding rate

6.55 Mpps

Power supply

Inbuilt

Dimensions

440 mm × 220 mm × 44 mm

Units per Shipping Box

1

Shipping Box Depth

54 cm

Shipping Box Height

9 cm

Shipping Box Weight

3.22 kg

Shipping Box Width

34 cm

Unit Calculated Volume

0.01652 cubm

Product Net Weight

2.47 kg

Unit Calculated Weight

3.22 kg

Unit Box Width

0.34

Unit Box Length

0.54

Unit Box Height

0.09

Full Description Line

Desktop/pedestal|Rack 1U|24x10Base-T / 100Base-TX|2x10/100/1000BASE-T/SFP combo|2xSFP|26xRJ45|PoE ports 24|PoE power budget 240 Watts|Switching capacity 8.8 Gbps|Forwarding rate 6.55 Mpps|Power supply Inbuilt|Dimensions 440 mm × 220 mm × 44 mm|Product Net Weight 2.47 kg

Category Code

SWI
