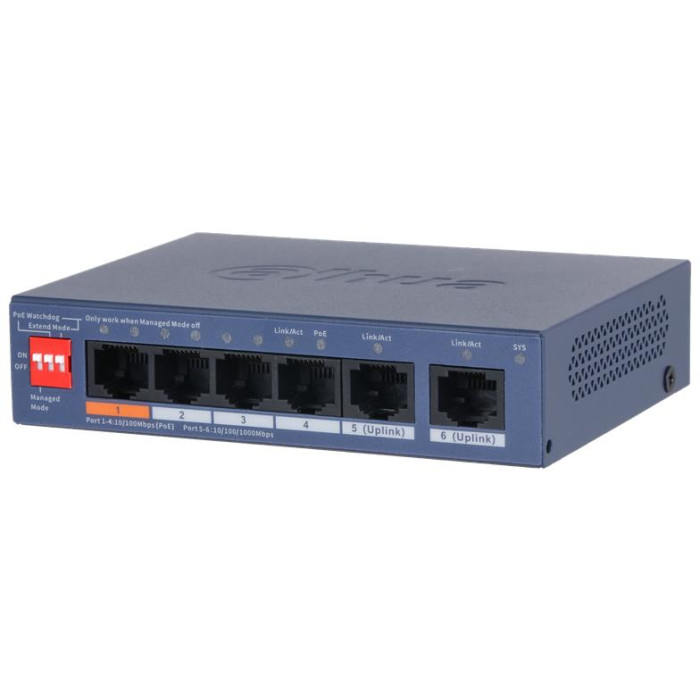

Switch|DAHUA|DH-CS4006-4ET2GT-60|Type L2|PoE ports 4|CS4006-4ET2GT-60

6-Port Cloud Managed Desktop Switch with 4-Port PoE
> 4 × RJ45 10/100 Mbps PoE ports, 2 × RJ45 Gigabit ports.
> 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port.
> DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
> Wide operating temperature ranging from –10 °C to 55 °C.
> Supports VLAN and loop protection.
> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
> Easy config to auto detect and set up network and security systems.

Description

6-Port Cloud Managed Desktop Switch with 4-Port PoE
> 4 × RJ45 10/100 Mbps PoE ports, 2 × RJ45 Gigabit ports.
> 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port.
> DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
> Wide operating temperature ranging from –10 °C to 55 °C.
> Supports VLAN and loop protection.
> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
> Easy config to auto detect and set up network and security systems.

Vendor Homepage

transmission.dahuasecurity.com/en/product-list/Business/CloudManagementSolution/NetworkSwitch/CS4006-4ET2GT-60

Category Code

SWI

10Base-T / 100Base-TX

4

10Base-T / 100Base-TX / 1000Base-T

2

IEEE 802.3

Да

IEEE 802.3ab

Да

IEEE 802.3az

Да

IEEE 802.3u

Да

IEEE 802.3x

Да

Модель

DH-CS4006-4ET2GT-60

Тип

L2

Количество портов

6

PoE порты

4

Пропускная способность

4.8 Gbps

Пропускная способность в пакетах

3.57 Mpps

Блок питания

Внешний

Источник питания

53 VDC, 1.22 A

Диапазон рабочих температур

–10 °C to +55 °C

Размер

115 mm × 84 mm × 27 mm

Количество в транспортной упаковке

1

Объем

0.000732 м3

Вес без упаковки

0.2 кг

Вес в упаковке

0.76 кг
