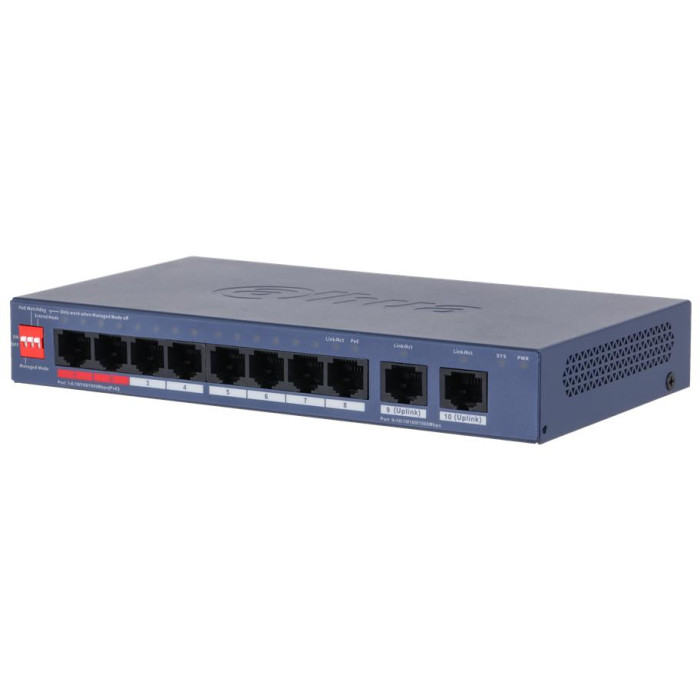

Switch|DAHUA|DH-CS4010-8ET2GT-110|Type L2|PoE ports 8|110 Watts|CS4010-8ET2GT-110

10-Port Cloud Managed Desktop Switch with 8-Port PoE
> 8 × RJ-45 10/100 Mbps PoE ports, 2 x RJ-45 Gigabit ports.
> 110 W total PoE budget, 802.3af/at on all PoE ports, additional 802.3 bt on red ports.
> DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
> Wide operating temperature ranging from –10 °C to 55 °C.
> Supports VLAN and loop protection.
> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
> Easy config to auto detect and set up network and security systems.

Description

10-Port Cloud Managed Desktop Switch with 8-Port PoE
> 8 × RJ-45 10/100 Mbps PoE ports, 2 x RJ-45 Gigabit ports.
> 110 W total PoE budget, 802.3af/at on all PoE ports, additional 802.3 bt on red ports.
> DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
> Wide operating temperature ranging from –10 °C to 55 °C.
> Supports VLAN and loop protection.
> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
> Easy config to auto detect and set up network and security systems.

Vendor Homepage

transmission.dahuasecurity.com/en/product-list/Business/CloudManagementSolution/NetworkSwitch/CS4010-8ET2GT-110

Category Code

SWI

IEEE 802.3

Да

IEEE 802.3ab

Да

IEEE 802.3az

Да

IEEE 802.3u

Да

IEEE 802.3x

Да

Модель

DH-CS4010-8ET2GT-110

Тип

L2

Количество портов

10

PoE порты

8

PoE мощность

110 Вт

Пропускная способность

5.6 Gbps

Пропускная способность в пакетах

4.17 Mpps

Блок питания

Внешний

Источник питания

54 V, 2.22 A

Диапазон рабочих температур

–10 °C to +55 °C

Размер

184.6 mm × 103.3 mm × 27 mm

Количество в транспортной упаковке

1

Объем

0.000732 м3

Вес без упаковки

0.36 кг

Вес в упаковке

1.09 кг
