Switch|DAHUA|DH-SG4020LP|Type L2|PoE ports 16|190 Watts|SG4020LP

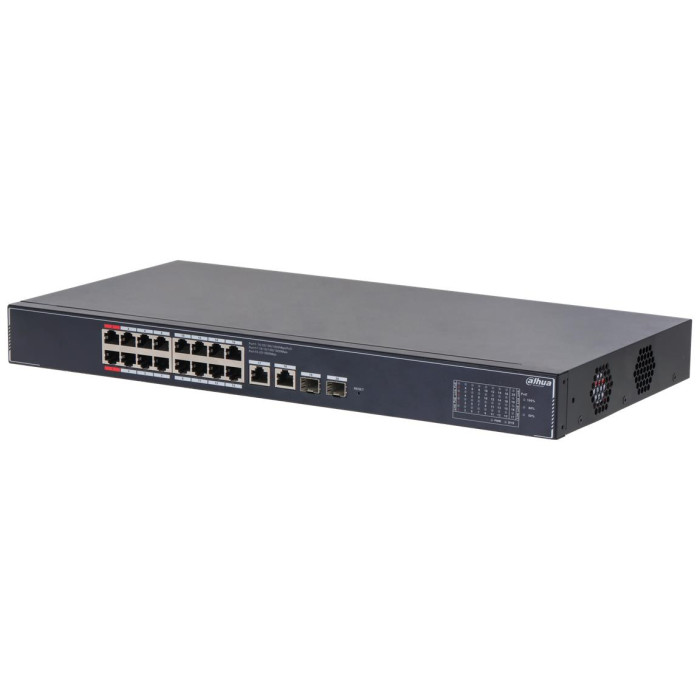

20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE
> 16 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit ports, 2 × SFP Gigabit ports.
> 190 W total PoE budget, 802.3af/at on all PoE ports, additional 802.3 bt on red ports.
> Wide operating temperature ranging from –10 °C to 55 °C.
> Supports VLAN, STP, RSTP and link aggregation.
> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network. Easy config to auto detect and set up network.

Description

20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE
> 16 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit ports, 2 × SFP Gigabit ports.
> 190 W total PoE budget, 802.3af/at on all PoE ports, additional 802.3 bt on red ports.
> Wide operating temperature ranging from –10 °C to 55 °C.
> Supports VLAN, STP, RSTP and link aggregation.
> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network. Easy config to auto detect and set up network.

Vendor Homepage

transmission.dahuasecurity.com/en/product-list/Business/Switches/PoESwitchesForIT/SG4020LP

Category Code

SWI

Настольное исполнение

Да

10Base-T / 100Base-TX / 1000Base-T

2

SFP

2

IEEE 802.3

Да

IEEE 802.3ab

Да

IEEE 802.3u

Да

IEEE 802.3x

Да

IEEE 802.3z

Да

Модель

DH-SG4020LP

Тип

L2

Количество портов

20

PoE порты

16

PoE мощность

190 Вт

Пропускная способность

40 Gbps

Пропускная способность в пакетах

29.76 Mpps

Блок питания

Встроенный

Параметры питания

PoE

Источник питания

100–240 VAC, 47–63 Hz, max 4A

Диапазон рабочих температур

–10 °C to +55 °C

Размер

440 mm × 220 mm × 44 mm

Количество в транспортной упаковке

1

Объем

0.000732 м3

Вес без упаковки

2.32 кг

Вес в упаковке

2.97 кг
