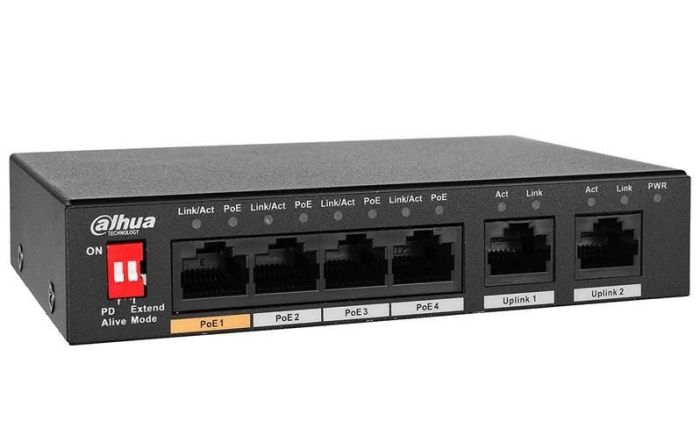

Switch|DAHUA|PFS3005-4ET-60-V2|Desktop/pedestal|PoE ports 4|60 Watts|DH-PFS3005-4ET-60-V2

> Intelligent PoE
> Hi-PoE 60W (orange port)
> 8-pin assignment PoE power supply
> Long distance PoE (250 m long distance PoE transmission)
> PoE watchdog
> Wide working temperature
> Conforms to IEEE802.3, IEEE802.3u, IEEE802.3x
> PoE Power Consumption: Port 1 ≤ 60 W (Hi-PoE); port 2-4 ≤ 30 W; total ≤ 60 W
> PoE Protocol: IEEE802.3af/ IEEE802.3at/ Hi-PoE

Description

> Intelligent PoE
> Hi-PoE 60W (orange port)
> 8-pin assignment PoE power supply
> Long distance PoE (250 m long distance PoE transmission)
> PoE watchdog
> Wide working temperature
> Conforms to IEEE802.3, IEEE802.3u, IEEE802.3x
> PoE Power Consumption: Port 1 ≤ 60 W (Hi-PoE); port 2-4 ≤ 30 W; total ≤ 60 W
> PoE Protocol: IEEE802.3af/ IEEE802.3at/ Hi-PoE

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS3005-4ET-60

Model name

PFS3005-4ET-60-V2

Desktop/pedestal

Yes

Primary port count

4

IEEE 802.3af

Yes

IEEE 802.3at

Yes

PoE ports

4

PoE power budget

60 Watts

Switching capacity

1.8 Gbps

Dimensions

130 × 85 × 26mm

Units per Shipping Box

1

Shipping Box Depth

27 cm

Shipping Box Height

8 cm

Shipping Box Weight

0.94 kg

Shipping Box Width

24 cm

Unit Calculated Volume

0.005184 cubm

Product Net Weight

0.3 kg

Unit Calculated Weight

0.94 kg

Unit Box Width

0.24

Unit Box Length

0.27

Unit Box Height

0.08

Full Description Line

Desktop/pedestal|IEEE 802.3af|IEEE 802.3at|PoE ports 4|PoE power budget 60 Watts|Switching capacity 1.8 Gbps|Dimensions 130 × 85 × 26mm|Product Net Weight 0.3 kg

Category Code

SWI
