Switch|DAHUA|PFS3006-4ET-60|Type L2|PoE ports 4|60 Watts|DH-PFS3006-4ET-60-V2

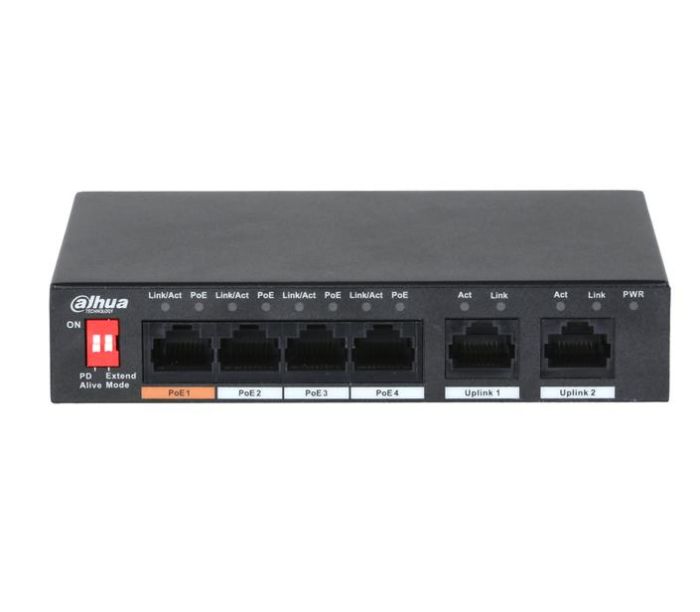

6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports
> Layer two commercial switch
> Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards
> MDI/MDIX self-adaptation
> RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards
> Port 1 supports Hi-PoE 60W power supply
> 250 m PoE power supply
> Wall mounting and mechanical anti-thef
> 53V DC power supply
> Supports PoE watchdog
> Port 1–4: 4 × RJ-45 10/100 M (PoE); Port 5–6: 2 × RJ-45 10/100 M (uplink)
> PoE Power: 60W

Description

6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports
> Layer two commercial switch
> Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards
> MDI/MDIX self-adaptation
> RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards
> Port 1 supports Hi-PoE 60W power supply
> 250 m PoE power supply
> Wall mounting and mechanical anti-thef
> 53V DC power supply
> Supports PoE watchdog
> Port 1–4: 4 × RJ-45 10/100 M (PoE); Port 5–6: 2 × RJ-45 10/100 M (uplink)
> PoE Power: 60W

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS3006-4ET-60

Model name

PFS3006-4ET-60

Switch type

L2

Primary port count

4

PoE ports

4

PoE power budget

60 Watts

Switching capacity

1.8 Gbps

Forwarding rate

0.89 Mpps

Dimensions

130 mm × 85 mm × 26 mm

Units per Shipping Box

1

Shipping Box Depth

26.5 cm

Shipping Box Height

24 cm

Shipping Box Weight

0.94 kg

Shipping Box Width

8 cm

Unit Calculated Volume

0.005088 cubm

Product Net Weight

0.3 kg

Unit Calculated Weight

0.94 kg

Unit Box Width

0.08

Unit Box Length

0.265

Unit Box Height

0.24

Full Description Line

Type L2|PoE ports 4|PoE power budget 60 Watts|Switching capacity 1.8 Gbps|Forwarding rate 0.89 Mpps|Dimensions 130 mm × 85 mm × 26 mm|Product Net Weight 0.3 kg
