Switch|DAHUA|PFS3010-8GT-96|Desktop/pedestal|Rack|8x10Base-T / 100Base-TX / 1000Base-T|PoE ports 8|96 Watts|DH-PFS3010-8GT-96-V2

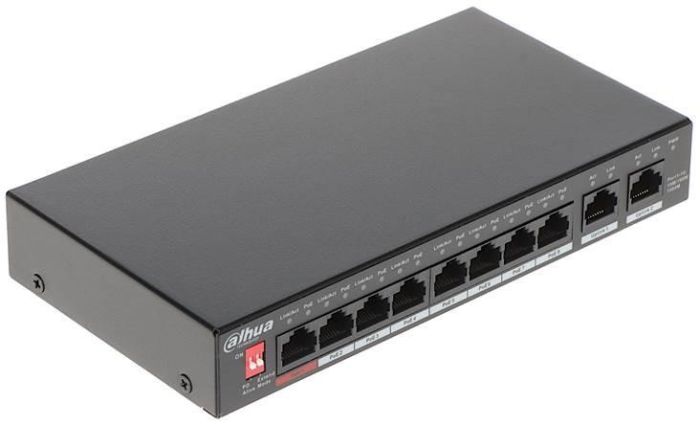

10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE
> Intelligent PoE
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> BT 90W
> All-giga ports
> Wide working temperature

Port 1–8: 8 × RJ-4510/100/1000 Mbps (PoE)

Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)

Capacity: 20 Gbps

Packet Forwarding Rate: 14.88 Mpps

Communication Standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power: 96 W

250 m long distance PoE transmission

Description

10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE
> Intelligent PoE
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> BT 90W
> All-giga ports
> Wide working temperature

Port 1–8: 8 × RJ-4510/100/1000 Mbps (PoE)

Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)

Capacity: 20 Gbps

Packet Forwarding Rate: 14.88 Mpps

Communication Standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power: 96 W

250 m long distance PoE transmission

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/All-gigabit-PoE-Switch/PFS3010-8GT-96

Model name

PFS3010-8GT-96

Desktop/pedestal

Yes

Rack

Yes

Primary port count

8

10Base-T / 100Base-TX / 1000Base-T

8

IEEE 802.3

Yes

IEEE 802.3u

Yes

IEEE 802.3x

Yes

PoE ports

8

PoE power budget

96 Watts

Switching capacity

20 Gbps

Forwarding rate

14.88 Mpps

Dimensions

190 mm × 100 mm × 30 mm

Units per Shipping Box

1

Shipping Box Depth

27 cm

Shipping Box Height

24.5 cm

Shipping Box Weight

1.284 kg

Shipping Box Width

8 cm

Unit Calculated Volume

0.005292 cubm

Product Net Weight

0.5 kg

Unit Calculated Weight

1.28 kg

Unit Box Width

0.08

Unit Box Length

0.27

Unit Box Height

0.245

Full Description Line

Desktop/pedestal|Rack|8x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.3|IEEE 802.3u|IEEE 802.3x|PoE ports 8|PoE power budget 96 Watts|Switching capacity 20 Gbps|Forwarding rate 14.88 Mpps|Dimensions 190 mm × 100 mm × 30 mm|Product Net Weight 0.5 kg

Category Code

SWI
