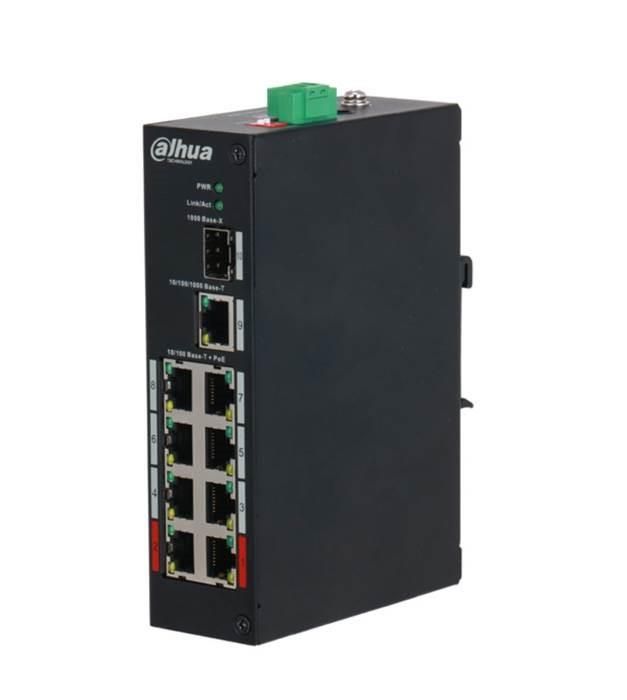

Switch|DAHUA|PFS3110-8ET-96-V2|PoE ports 8|96 Watts|DH-PFS3110-8ET-96-V2

> Eight-PIN Assignment PoE Power Supply
> Intelligent PoE
> Red port supports 90W IEEE802.3bt
> PoE watchdog
> 250 m long distance PoE transmission
> Wide operating temperature: –30°C to +65°C (–22°F to +149°F)

Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z

PoE Standard IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power 96W

Description

> Eight-PIN Assignment PoE Power Supply
> Intelligent PoE
> Red port supports 90W IEEE802.3bt
> PoE watchdog
> 250 m long distance PoE transmission
> Wide operating temperature: –30°C to +65°C (–22°F to +149°F)

Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z

PoE Standard IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power 96W

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Hardened-PoE-Switch/PFS3110-8ET-96

Model name

PFS3110-8ET-96-V2

Primary port count

8

PoE ports

8

PoE power budget

96 Watts

Switching capacity

3.6 Gbps

Forwarding rate

2.678 Mpps

Dimensions

190 × 100 × 30mm

Units per Shipping Box

1

Shipping Box Depth

26.5 cm

Shipping Box Height

24.5 cm

Shipping Box Weight

1.334 kg

Shipping Box Width

8 cm

Unit Calculated Volume

0.005194 cubm

Product Net Weight

0.47 kg

Unit Calculated Weight

1.33 kg

Unit Box Width

0.08

Unit Box Length

0.265

Unit Box Height

0.245

Full Description Line

PoE ports 8|PoE power budget 96 Watts|Switching capacity 3.6 Gbps|Forwarding rate 2.678 Mpps|Dimensions 190 × 100 × 30mm|Product Net Weight 0.47 kg

Category Code

SWI
