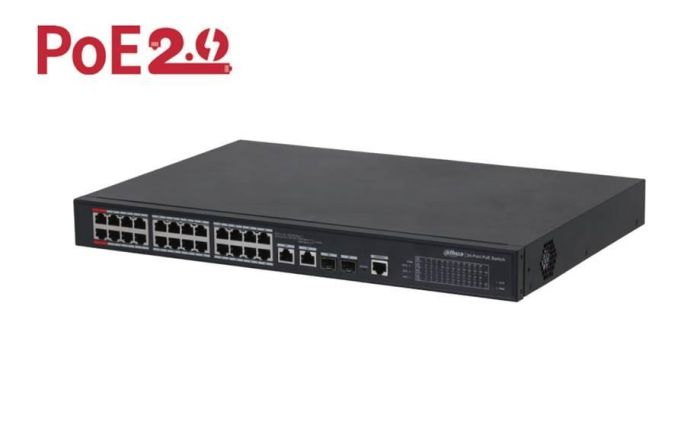

Switch|DAHUA|PFS4226-24ET-360-V3|Desktop/pedestal|DH-PFS4226-24ET-360-V3

> Red port supports 90W IEEE802.3bt
> Web management with friendly interface and easy operation
> 250 m long distance PoE transmission
> PoE watchdog
> Plug and play

Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z

PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt

Port 1-24: 24 × RJ-45 10 M/100 M (PoE)

Port 25-26: 2 × RJ-45 10 M/100 M/1000 M (uplink)

Port 25-26: 2 × SFP 1000 M (uplink) (combo)

PoE Budget: Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, total ≤ 360W

Description

> Red port supports 90W IEEE802.3bt
> Web management with friendly interface and easy operation
> 250 m long distance PoE transmission
> PoE watchdog
> Plug and play

Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z

PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt

Port 1-24: 24 × RJ-45 10 M/100 M (PoE)

Port 25-26: 2 × RJ-45 10 M/100 M/1000 M (uplink)

Port 25-26: 2 × SFP 1000 M (uplink) (combo)

PoE Budget: Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, total ≤ 360W

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS4226-24ET-360

Model name

PFS4226-24ET-360-V3

Desktop/pedestal

Yes

Primary port count

24

10/100/1000M

24

Switching capacity

8.8 Gbps

Forwarding rate

6.55 Mpps

Dimensions

440 × 300 × 44mm

Units per Shipping Box

1

Shipping Box Depth

52.5 cm

Shipping Box Height

41 cm

Shipping Box Weight

4.466 kg

Shipping Box Width

11 cm

Unit Calculated Volume

0.02368 cubm

Product Net Weight

4 kg

Unit Calculated Weight

4.47 kg

Unit Box Width

0.11

Unit Box Length

0.525

Unit Box Height

0.41

Full Description Line

Desktop/pedestal|24x10/100/1000M|Switching capacity 8.8 Gbps|Forwarding rate 6.55 Mpps|Dimensions 440 × 300 × 44mm|Product Net Weight 4 kg

Category Code

SWI
