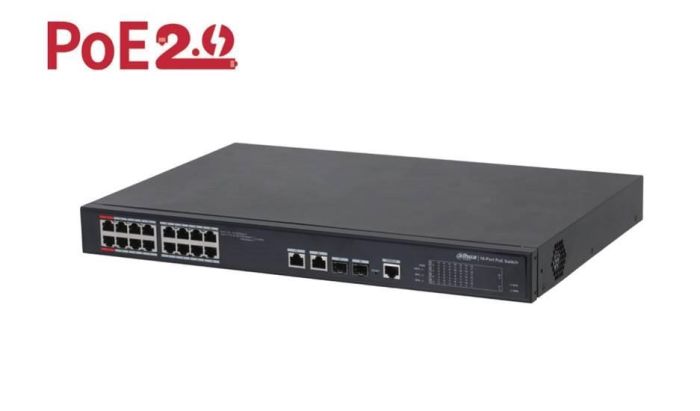

Switch|DAHUA|Type L2|Desktop/pedestal|90 Watts|PFS4218-16ET-240-V3

> Layer 2 management PoE switch
> Intelligent PoE
> Red port supports 90W IEEE802.3bt
> Web management with friendly interface and easy operation
> 250 m long distance PoE transmission
> PoE watchdog
> Plug and play

Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z

PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt

Port 1-16: 16 × RJ-45 10 M/100 M (PoE)

Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink)

Port 17-18: 2 × SFP 1000 M (uplink) (combo)

PoE Budget: Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 240W

Description

> Layer 2 management PoE switch
> Intelligent PoE
> Red port supports 90W IEEE802.3bt
> Web management with friendly interface and easy operation
> 250 m long distance PoE transmission
> PoE watchdog
> Plug and play

Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z

PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt

Port 1-16: 16 × RJ-45 10 M/100 M (PoE)

Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink)

Port 17-18: 2 × SFP 1000 M (uplink) (combo)

PoE Budget: Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 240W

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS4218-16ET-240

Switch type

L2

Desktop/pedestal

Yes

Primary port count

16

10/100/1000M

2

10/100M

16

Combo 10/100/1000M-T/SFP

2

IEEE 802.3

Yes

IEEE 802.3ab

Yes

IEEE 802.3u

Yes

IEEE 802.3x

Yes

IEEE 802.3z

Yes

PoE power budget

90 Watts

Switching capacity

8.8 Gbps

Forwarding rate

5.36 Mpps

Dimensions

440 mm × 300 mm × 44 mm

Units per Shipping Box

1

Shipping Box Depth

53 cm

Shipping Box Height

41.5 cm

Shipping Box Weight

4.42 kg

Shipping Box Width

11 cm

Unit Calculated Volume

0.02419 cubm

Product Net Weight

3.32 kg

Unit Calculated Weight

4.42 kg

Unit Box Width

0.11

Unit Box Length

0.53

Unit Box Height

0.415

Full Description Line

Type L2|Desktop/pedestal|16x10/100M|2x10/100/1000M|2xCombo 10/100/1000M-T/SFP|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|PoE power budget 90 Watts|Switching capacity 8.8 Gbps|Forwarding rate 5.36 Mpps|Dimensions 440 mm × 300 mm × 44 mm|Product Net Weight 3.32 kg

Category Code

SWI
