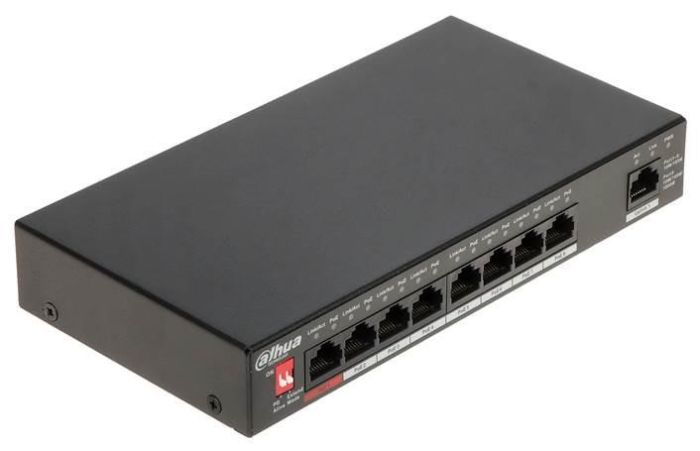

Switch|DAHUA|Type L2|Desktop/pedestal|Rack|1x10Base-T / 100Base-TX / 1000Base-T|PoE ports 8|96 Watts|DH-PFS3009-8ET1GT-96-V2

> Intelligent PoE
> BT 90W
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> Wide working temperature

Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)

Port 9: 1 × RJ-45 10/100/1000 Mbps (Uplink)

Capacity: 3.6 Gbps

Packet Forwarding Rate: 2.678 Mbps

Communication Standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt

PoE Power: 96W

250 m long distance PoE transmission

Description

> Intelligent PoE
> BT 90W
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> Wide working temperature

Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)

Port 9: 1 × RJ-45 10/100/1000 Mbps (Uplink)

Capacity: 3.6 Gbps

Packet Forwarding Rate: 2.678 Mbps

Communication Standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt

PoE Power: 96W

250 m long distance PoE transmission

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS3009-8ET1GT-96

Switch type

L2

Desktop/pedestal

Yes

Rack

Yes

Primary port count

9

10Base-T / 100Base-TX / 1000Base-T

1

IEEE 802.3

Yes

IEEE 802.3ab

Yes

IEEE 802.3u

Yes

IEEE 802.3x

Yes

PoE ports

8

PoE power budget

96 Watts

Switching capacity

3.6 Gbps

Forwarding rate

2.678 Mpps

Dimensions

190 mm × 100 mm × 30 mm

Units per Shipping Box

1

Shipping Box Depth

27 cm

Shipping Box Height

24 cm

Shipping Box Weight

1.253 kg

Shipping Box Width

8 cm

Unit Calculated Volume

0.005184 cubm

Product Net Weight

0.47 kg

Unit Calculated Weight

1.25 kg

Unit Box Width

0.08

Unit Box Length

0.27

Unit Box Height

0.24

Full Description Line

Type L2|Desktop/pedestal|Rack|1x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|PoE ports 8|PoE power budget 96 Watts|Switching capacity 3.6 Gbps|Forwarding rate 2.678 Mpps|Dimensions 190 mm × 100 mm × 30 mm|Product Net Weight 0.47 kg

Category Code

SWI
