Switch|MIKROTIK|8x10Base-T / 100Base-TX / 1000Base-T|4xSFP|1xConsole|CRS112-8P-4S-IN

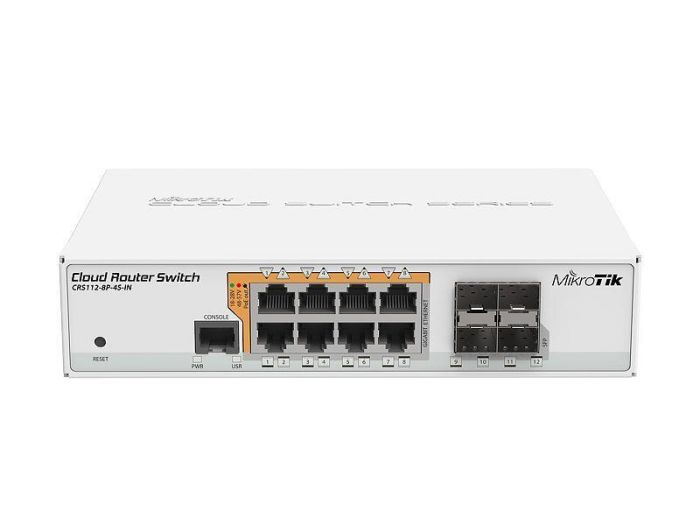

8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5


CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.

Description

8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5


CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.

Vendor Homepage

mikrotik.com/product/crs112_8p_4s_in#fndtn-specifications

Primary port count

8

10Base-T / 100Base-TX / 1000Base-T

8

Console

1

SFP

4

Units per Shipping Box

10

Shipping Box Depth

61 cm

Shipping Box Height

34 cm

Shipping Box Weight

16.2 kg

Shipping Box Width

26 cm

Unit Calculated Volume

0.005392 cubm

Product Net Weight

0.5 kg

Unit Calculated Weight

1.62 kg

CnCode

85176200

Unit Box Width

0.238

Unit Box Length

0.308

Unit Box Height

0.056

Full Description Line

8x10Base-T / 100Base-TX / 1000Base-T|4xSFP|1xConsole|Product Net Weight 0.5 kg

Category Code

SWI
