MIKROTIK CRS328-4C-20S-4S+RM

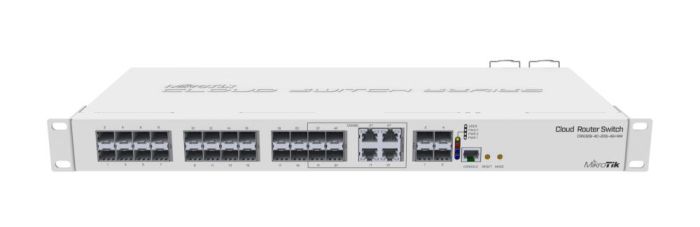

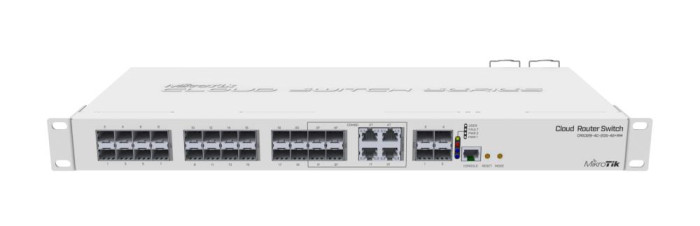

The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.


The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.


The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.

Description

MIKROTIK CRS328-4C-20S-4S+RM


The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.


The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.


The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.

Vendor Homepage

mikrotik.com/product/crs328_4c_20s_4s_rm

Model name

CRS328-4C-20S-4S+RM

Switch type

L2

Rack 1U

Yes

10/100/1000BASE-T/SFP combo

4

RJ45

1

SFP

20

SFP+

4

IEEE 802.1Q

Yes

IEEE 802.3ad

Yes

Switching capacity

128 Gbps

Forwarding rate

95.2 Mpps

Dimensions

443 x 200 x 44 mm

Units per Shipping Box

1

Shipping Box Depth

49.5 cm

Shipping Box Height

31 cm

Shipping Box Weight

2.528 kg

Shipping Box Width

6 cm

Unit Calculated Volume

0.009207 cubm

Product Net Weight

1.7 kg

Unit Calculated Weight

2.53 kg

Unit Box Width

0.06

Unit Box Length

0.495

Unit Box Height

0.31

Full Description Line

Type L2|Rack 1U|4x10/100/1000BASE-T/SFP combo|20xSFP|4xSFP+|1xRJ45|IEEE 802.1Q|IEEE 802.3ad|Switching capacity 128 Gbps|Forwarding rate 95.2 Mpps|Dimensions 443 x 200 x 44 mm|Product Net Weight 1.7 kg

Category Code

SWI
