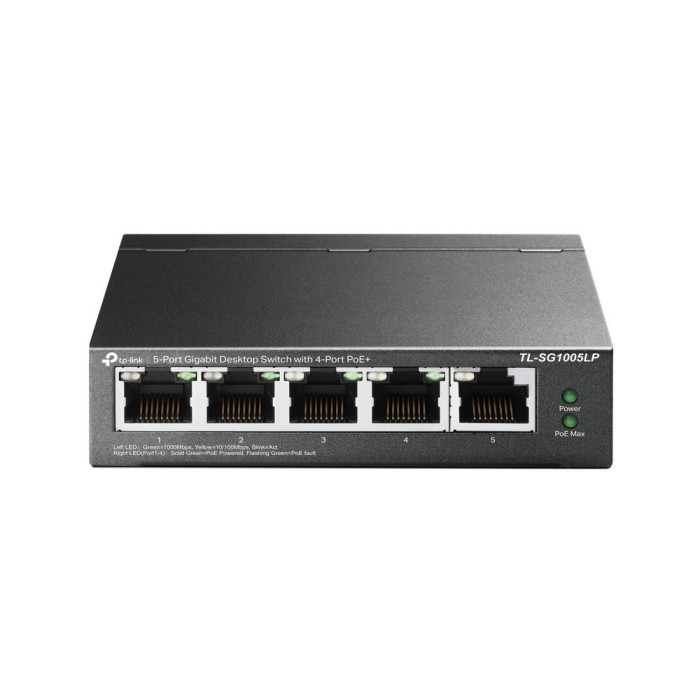

Switch|TP-LINK|Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE ports 1|TL-SG1005LP

- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 40 W for all PoE ports*
- Plug and play, no configuration and installation required

Description

- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 40 W for all PoE ports*
- Plug and play, no configuration and installation required

Vendor Homepage

www.tp-link.com/uk/business-networking/poe-switch/tl-sg1005lp/

Model

TL-SG1005LP

Desktop/pedestal

Yes

Primary port count

5

10Base-T / 100Base-TX / 1000Base-T

5

IEEE 802.3af

Yes

IEEE 802.3at

Yes

PoE ports

1

Switching capacity

10 Gbps

Forwarding rate

7.44 Mpps

Switching method

Store-and-forward

Included Accessories

TL-SG1005LP, Power Adapter, Installation Guide

Dimensions

99.8×98×25 mm

Units per Shipping Box

1

Shipping Box Depth

19.5 cm

Shipping Box Height

13 cm

Shipping Box Weight

0.74 kg

Shipping Box Width

12 cm

Unit Calculated Volume

0.003042 cubm

Product Net Weight

0.4 kg

Unit Calculated Weight

0.74 kg

Unit Box Width

0.12

Unit Box Length

0.195

Unit Box Height

0.13

Full Description Line

Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.3af|IEEE 802.3at|PoE ports 1|Switching capacity 10 Gbps|Forwarding rate 7.44 Mpps|Switching method Store-and-forward|Included Accessories TL-SG1005LP, Power Adapter, Installation Guide|Dimensions 99.8×98×25 mm|Product Net Weight 0.4 kg

Category Code

SWI
