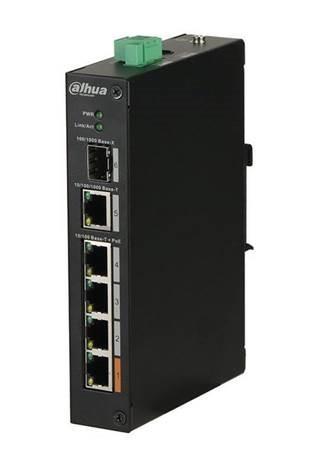

Switch|DAHUA|60 Watts|DH-PFS3106-4ET-60-V2

Unmanaged PoE switch
> Eight-Pin assignment PoE power supply
> Intelligent PoE
> Hi-PoE 60W (Orange Port)
> PoE watchdog
> 250 m long distance PoE transmission
> Wide operating temperature: –30°C to +65°C

1 Ethernet Port

1 Optical Port

Port 1–4: 4 × RJ-45 10/100 Mbps (PoE)

Port 5: 1 × RJ-45 10/100/1000 Mbps (Uplink)

Port 6: 1 × SFP 100/1000 Mbps (Uplink)

Capacity 6.80 Gbps

Packet Forwarding Rate 3.57 Mpps

Packet Buffer Memory 1 Mbit

MAC Table Size 8K

Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z

PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power 60W

250 m long distance PoE transmission

Description

Unmanaged PoE switch
> Eight-Pin assignment PoE power supply
> Intelligent PoE
> Hi-PoE 60W (Orange Port)
> PoE watchdog
> 250 m long distance PoE transmission
> Wide operating temperature: –30°C to +65°C

1 Ethernet Port

1 Optical Port

Port 1–4: 4 × RJ-45 10/100 Mbps (PoE)

Port 5: 1 × RJ-45 10/100/1000 Mbps (Uplink)

Port 6: 1 × SFP 100/1000 Mbps (Uplink)

Capacity 6.80 Gbps

Packet Forwarding Rate 3.57 Mpps

Packet Buffer Memory 1 Mbit

MAC Table Size 8K

Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z

PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power 60W

250 m long distance PoE transmission

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Hardened-PoE-Switch/PFS3106-4ET-60

Primary port count

4

10/100/1000M

4

IEEE 802.3

Yes

IEEE 802.3ab

Yes

IEEE 802.3u

Yes

IEEE 802.3x

Yes

IEEE 802.3z

Yes

PoE power budget

60 Watts

Switching capacity

6.8 Gbps

Forwarding rate

3.57 Mpps

Dimensions

150 mm × 100 mm × 30 mm

Units per Shipping Box

1

Shipping Box Depth

27 cm

Shipping Box Height

7.8 cm

Shipping Box Weight

1.089 kg

Shipping Box Width

24 cm

Unit Calculated Volume

0.005054 cubm

Product Net Weight

0.45 kg

Unit Calculated Weight

1.09 kg

Unit Box Width

0.24

Unit Box Length

0.27

Unit Box Height

0.078

Full Description Line

4x10/100/1000M|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|PoE power budget 60 Watts|Switching capacity 6.8 Gbps|Forwarding rate 3.57 Mpps|Dimensions 150 mm × 100 mm × 30 mm|Product Net Weight 0.45 kg

Category Code

SWI
