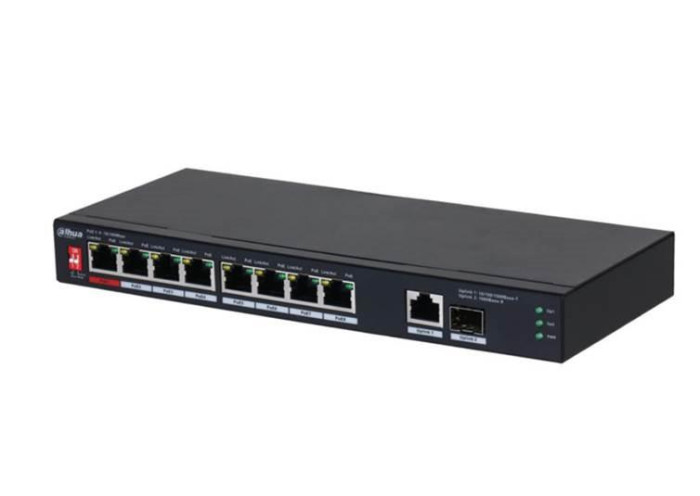

Switch|DAHUA|PFS3110-8ET1GT1GF-96|Desktop/pedestal|8x10Base-T / 100Base-TX|1x10Base-T / 100Base-TX / 1000Base-T|2x1000Base-T|PoE ports 8|96 Watts|DH-PFS3110-8ET1GT1GF-96

> 100 Mbps PoE ports and gigabit uplink ports.
> The red port meets the IEEE 802.3bt standard.
> Power supply supports up to 90 W.
> PoE watchdog monitors the status of terminals in real-time.
> Supports 250 m long-distance power supply.
> Supports the power management policy.
> 8-pin PoE offers better compatibility and reduces cable loss.
> Durable full-metal housing provides great heat dissipation.

Communication Standard IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x

PoE Standard IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power 96W, Power supply unit included

Description

> 100 Mbps PoE ports and gigabit uplink ports.
> The red port meets the IEEE 802.3bt standard.
> Power supply supports up to 90 W.
> PoE watchdog monitors the status of terminals in real-time.
> Supports 250 m long-distance power supply.
> Supports the power management policy.
> 8-pin PoE offers better compatibility and reduces cable loss.
> Durable full-metal housing provides great heat dissipation.

Communication Standard IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x

PoE Standard IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power 96W, Power supply unit included

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS3110-8ET1GT1GF-96

Model name

PFS3110-8ET1GT1GF-96

Desktop/pedestal

Yes

Primary port count

8

1000Base-T

2

10Base-T / 100Base-TX

8

10Base-T / 100Base-TX / 1000Base-T

1

IEEE 802.3

Yes

IEEE 802.3ab

Yes

IEEE 802.3u

Yes

IEEE 802.3x

Yes

PoE ports

8

PoE power budget

96 Watts

Switching capacity

5.6 Gbps

Forwarding rate

4.17 Mpps

Dimensions

240 × 105 × 28mm

Units per Shipping Box

1

Shipping Box Depth

28.5 cm

Shipping Box Height

9 cm

Shipping Box Weight

1.38 kg

Shipping Box Width

24 cm

Unit Calculated Volume

0.006156 cubm

Product Net Weight

0.65 kg

Unit Calculated Weight

1.38 kg

CnCode

85176200

Unit Box Width

0.24

Unit Box Length

0.285

Unit Box Height

0.09

Full Description Line

Desktop/pedestal|8x10Base-T / 100Base-TX|1x10Base-T / 100Base-TX / 1000Base-T|2x1000Base-T|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|PoE ports 8|PoE power budget 96 Watts|Switching capacity 5.6 Gbps|Forwarding rate 4.17 Mpps|Dimensions 240 × 105 × 28mm|Product Net Weight 0.65 kg

Category Code

SWI
