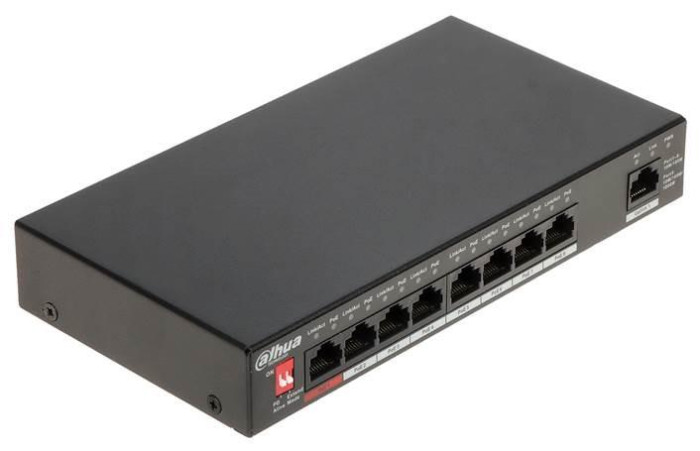

Switch|DAHUA|Type L2|Desktop/pedestal|Rack|1x10Base-T / 100Base-TX / 1000Base-T|PoE ports 8|96 Watts|DH-PFS3009-8ET1GT-96-V2

> Intelligent PoE
> BT 90W
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> Wide working temperature

Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)

Port 9: 1 × RJ-45 10/100/1000 Mbps (Uplink)

Capacity: 3.6 Gbps

Packet Forwarding Rate: 2.678 Mbps

Communication Standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt

PoE Power: 96W

250 m long distance PoE transmission

Description

> Intelligent PoE
> BT 90W
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> Wide working temperature

Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)

Port 9: 1 × RJ-45 10/100/1000 Mbps (Uplink)

Capacity: 3.6 Gbps

Packet Forwarding Rate: 2.678 Mbps

Communication Standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt

PoE Power: 96W

250 m long distance PoE transmission

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS3009-8ET1GT-96

Category Code

SWI

CnCode

85176200

Unit Box Height

0.24

Unit Box Length

0.27

Unit Box Width

0.08

Desktop/pedestal

Yes

Rack

Yes

10Base-T / 100Base-TX / 1000Base-T

1

IEEE 802.3

Yes

IEEE 802.3ab

Yes

IEEE 802.3u

Yes

IEEE 802.3x

Yes

Switch type

L2

Primary port count

9

PoE ports

8

PoE power budget

96 Watts

Switching capacity

3.6 Gbps

Forwarding rate

2.678 Mpps

Dimensions

190 mm × 100 mm × 30 mm

Units per Shipping Box

1

Unit Calculated Volume

0.005184 cubm

Product Net Weight

0.47 kg

Unit Calculated Weight

1.25 kg
