Switch|TP-LINK|Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE ports 4|TL-SG1005P

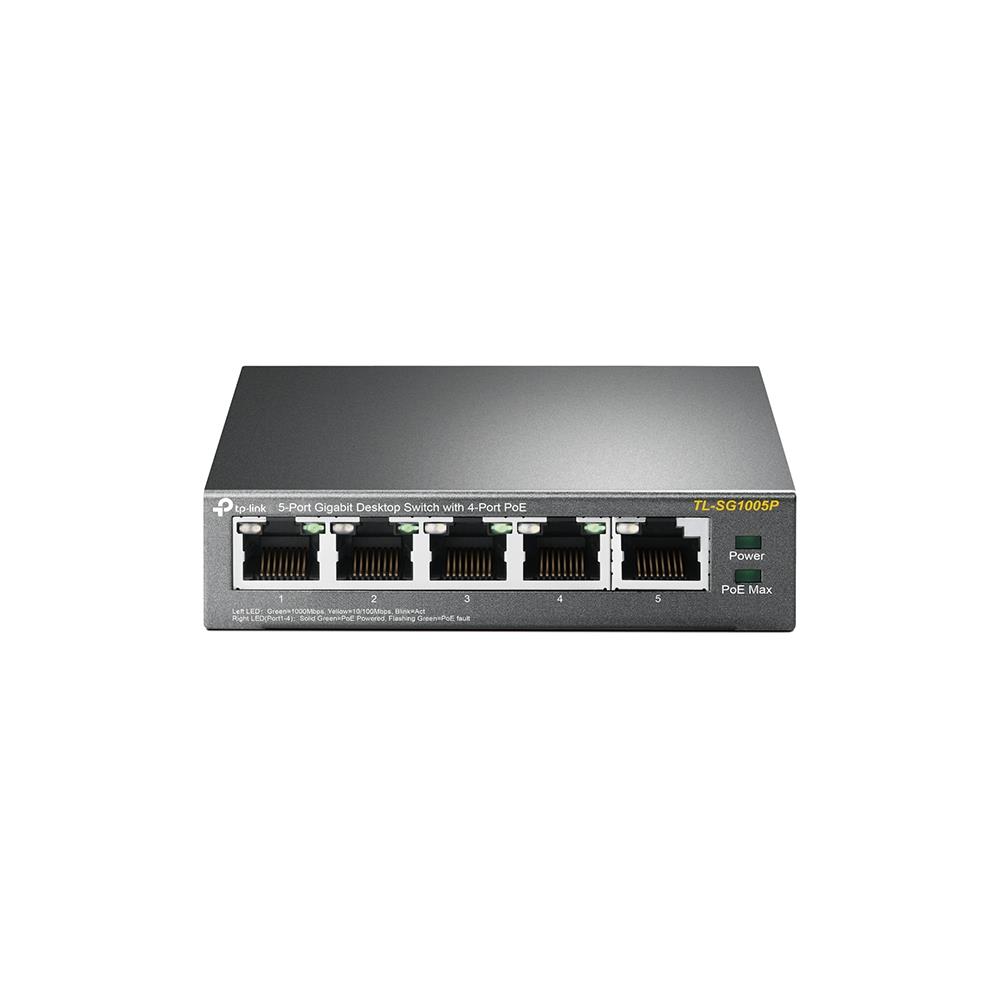

TP-LINK TL-SG1005P

5-Port Gigabit Desktop Switch with 4-Port PoE


TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

+ 5 10/100/1000Mbps RJ45 ports
+ With four PoE ports, transfers data and power on one single cable
+ Working with IEEE 802.3af compliant PDs, expands home and office network
+ 802.1p/DSCP QoS enable smooth latency-sensitive traffic
+ Requires no configuration and installation

Description

TP-LINK TL-SG1005P

5-Port Gigabit Desktop Switch with 4-Port PoE


TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

+ 5 10/100/1000Mbps RJ45 ports
+ With four PoE ports, transfers data and power on one single cable
+ Working with IEEE 802.3af compliant PDs, expands home and office network
+ 802.1p/DSCP QoS enable smooth latency-sensitive traffic
+ Requires no configuration and installation

Vendor Homepage

uk.tp-link.com/products/details/cat-42_TL-SG1005P.html

Desktop/pedestal

Yes

Primary port count

5

10Base-T / 100Base-TX / 1000Base-T

5

IEEE 802.3af

Yes

PoE ports

4

Switching capacity

10 Gbps

Switching method

Store-and-forward

Power supply

External

Dimensions

99.8 x 98 x 25 mm

Units per Shipping Box

12

Shipping Box Depth

42 cm

Shipping Box Height

39 cm

Shipping Box Weight

10.1 kg

Shipping Box Width

28.5 cm

Unit Calculated Volume

0.00389 cubm

Product Net Weight

0.249 kg

Unit Calculated Weight

0.842 kg

Unit Box Width

0.13

Unit Box Length

0.195

Unit Box Height

0.12

Full Description Line

Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.3af|PoE ports 4|Switching capacity 10 Gbps|Switching method Store-and-forward|Power supply External|Dimensions 99.8 x 98 x 25 mm|Product Net Weight 0.249 kg

Category Code

SWI
