Switch|TP-LINK|LS1210GP|9x10Base-T / 100Base-TX / 1000Base-T|1xSFP|PoE+ ports 8|LS1210GP

LS1210GP

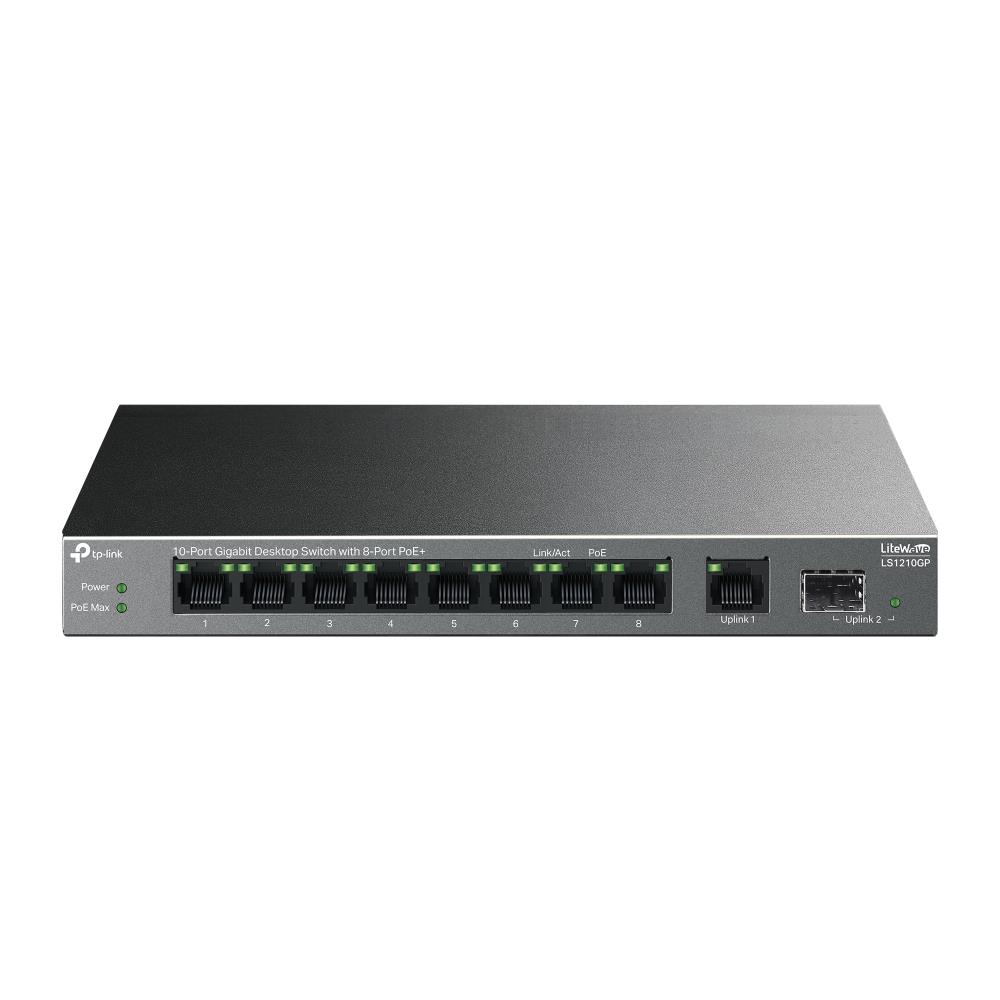

10-Port Gigabit Desktop Switch with 8-Port PoE+

• Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.
• 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
• Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
• Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
• Plug and Play: Simply plug and play for instant connectivity with no configuration required.
• Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Description

LS1210GP

10-Port Gigabit Desktop Switch with 8-Port PoE+

• Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.
• 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
• Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
• Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
• Plug and Play: Simply plug and play for instant connectivity with no configuration required.
• Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Vendor Homepage

www.tp-link.com/ae/business-networking/litewave-switch/ls1210gp/

Category Code

SWI

CnCode

85176200

Unit Box Height

0.24

Unit Box Length

0.32

Unit Box Width

0.07

10Base-T / 100Base-TX / 1000Base-T

9

SFP

1

IEEE 802.1p

Yes

IEEE 802.3af

Yes

IEEE 802.3at

Yes

IEEE 802.3x

Yes

Model name

LS1210GP

PoE+ ports

8

Switching capacity

20 Gbps

Forwarding rate

14.88 Mpps

Power supply

External

Dimensions

209×126×26 mm

Units per Shipping Box

1

Unit Calculated Volume

0.005376 cubm

Product Net Weight

1 kg

Unit Calculated Weight

1.2 kg
