Switch|TP-LINK|TL-SG1005P-PD|Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 5|TL-SG1005P-PD

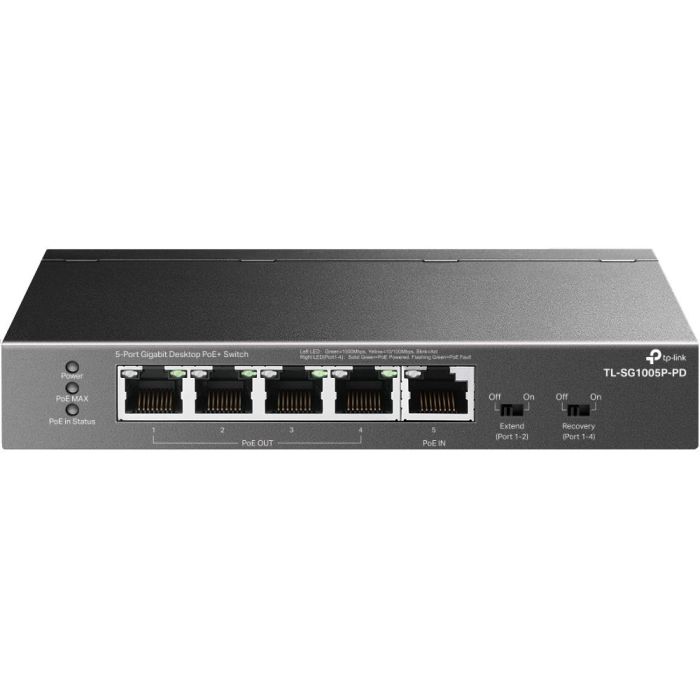

5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out

Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports

1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.

Long-Range PoE+: With Extend Mode, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.

PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.

Plug and Play: No configuration and installation required.

Power Supply: The product only supports PoE power supply, not AC or DC power supply.

Description

5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out

Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports

1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.

Long-Range PoE+: With Extend Mode, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.

PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.

Plug and Play: No configuration and installation required.

Power Supply: The product only supports PoE power supply, not AC or DC power supply.

Vendor Homepage

www.tp-link.com/au/business-networking/unmanaged-switch/tl-sg1005p-pd/

Model name

TL-SG1005P-PD

Desktop/pedestal

Yes

Primary port count

5

10Base-T / 100Base-TX / 1000Base-T

5

PoE+ ports

5

Switching capacity

10 Gbps

Forwarding rate

7.44 Mpps

Dimensions

158 × 101 × 25 mm

Units per Shipping Box

1

Shipping Box Depth

19.5 cm

Shipping Box Height

5 cm

Shipping Box Weight

0.5 kg

Shipping Box Width

13 cm

Unit Calculated Volume

0.001267 cubm

Product Net Weight

0.3 kg

Unit Calculated Weight

0.5 kg

CnCode

85176200

Unit Box Width

0.13

Unit Box Length

0.195

Unit Box Height

0.05

Full Description Line

Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 5|Switching capacity 10 Gbps|Forwarding rate 7.44 Mpps|Dimensions 158 × 101 × 25 mm|Product Net Weight 0.3 kg

Category Code

SWI
