Switch|UBIQUITI|USW-24-POE|Type L2|Desktop/pedestal|Rack|24x10Base-T / 100Base-TX / 1000Base-T|2xSFP|PoE+ ports 16|95 Watts|USW-24-POE

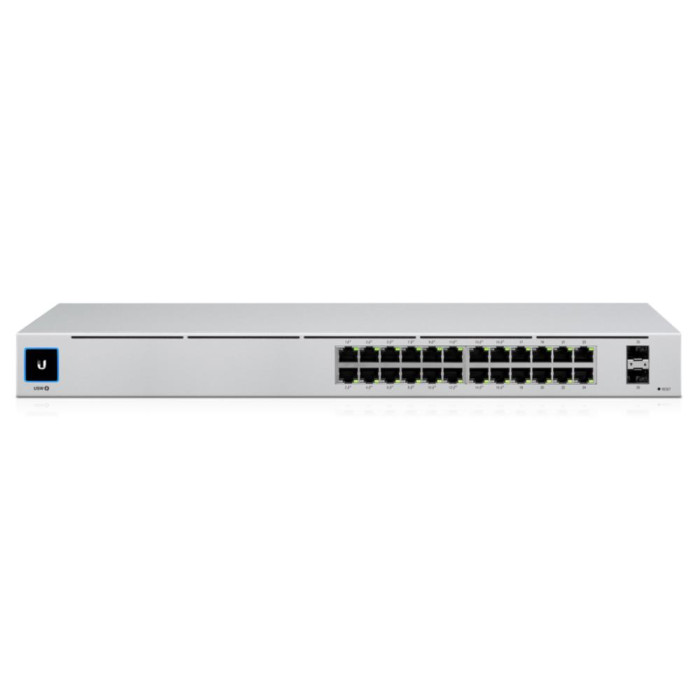

UBIQUITI USW-24-POE


The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3 touch LCM to provide status information. With a depth of 7.9, the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Description

UBIQUITI USW-24-POE


The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3 touch LCM to provide status information. With a depth of 7.9, the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Vendor Homepage

store.ui.com/collections/routing-switching/products/usw-24-poe?_pos=1&_sid=522b2366c&_ss=r

Model name

USW-24-POE

Switch type

L2

Desktop/pedestal

Yes

Rack

Yes

Primary port count

24

10Base-T / 100Base-TX / 1000Base-T

24

SFP

2

PoE+ ports

16

PoE power budget

95 Watts

Activity

Yes

Link

Yes

Power

Yes

Dimensions

424.4 x 200 x 43.7 mm

Units per Shipping Box

1

Shipping Box Depth

52 cm

Shipping Box Height

12 cm

Shipping Box Weight

3.93 kg

Shipping Box Width

31 cm

Unit Calculated Volume

0.01934 cubm

Product Net Weight

3 kg

Unit Calculated Weight

3.93 kg

Unit Box Width

0.31

Unit Box Length

0.52

Unit Box Height

0.12

Full Description Line

Type L2|Desktop/pedestal|Rack|24x10Base-T / 100Base-TX / 1000Base-T|2xSFP|PoE+ ports 16|PoE power budget 95 Watts|Activity|Link|Power|Dimensions 424.4 x 200 x 43.7 mm|Product Net Weight 3 kg

Category Code

SWI
