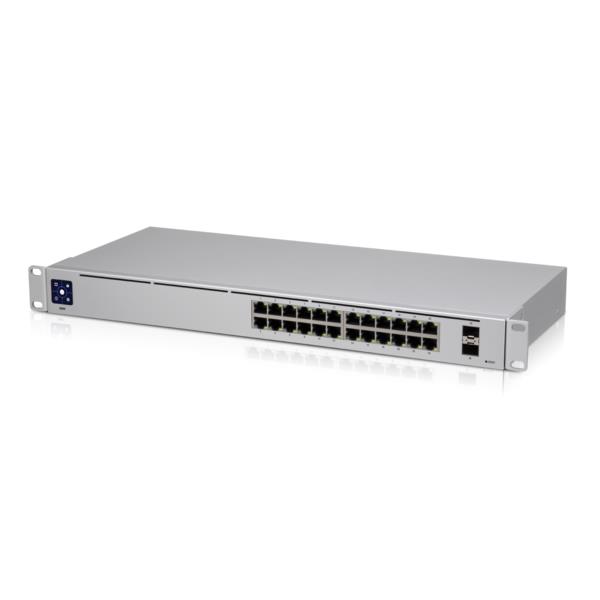

Switch|UBIQUITI|USW-24|Type L2|24x10Base-T / 100Base-TX / 1000Base-T|1xSFP|USW-24

UniFi Switch 24 is a fully managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) Gigabit SFP ports for fiber connectivity


The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3 touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Description

UniFi Switch 24 is a fully managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) Gigabit SFP ports for fiber connectivity


The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3 touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Vendor Homepage

store.ui.com/collections/unifi-network-switching/products/usw-24

Model name

USW-24

Switch type

L2

Primary port count

24

10Base-T / 100Base-TX / 1000Base-T

24

SFP

1

Switching capacity

52 Gbps

Forwarding rate

38.69 Mpps

Switching method

Store-and-forward

Dimensions

442.4 x 200 x 43.7 mm

Units per Shipping Box

2

Shipping Box Depth

54 cm

Shipping Box Height

25 cm

Shipping Box Weight

8.5 kg

Shipping Box Width

26 cm

Unit Calculated Volume

0.01755 cubm

Product Net Weight

2.79 kg

Unit Calculated Weight

4.25 kg

Unit Box Width

0.12

Unit Box Length

0.52

Unit Box Height

0.31

Full Description Line

Type L2|24x10Base-T / 100Base-TX / 1000Base-T|1xSFP|Switching capacity 52 Gbps|Forwarding rate 38.69 Mpps|Switching method Store-and-forward|Dimensions 442.4 x 200 x 43.7 mm|Product Net Weight 2.79 kg

Category Code

SWI
