Switch|UBIQUITI|USW-PRO-24|24x10Base-T / 100Base-TX / 1000Base-T|1xSFP+|USW-PRO-24

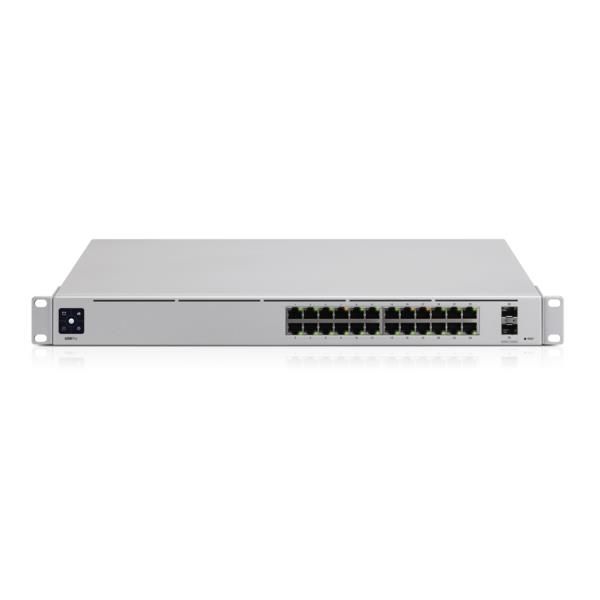

24-port switch with (24) Gigabit RJ45 ports and (2) 10G SFP+ ports. Powerful second-generation UniFi switching


UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Description

24-port switch with (24) Gigabit RJ45 ports and (2) 10G SFP+ ports. Powerful second-generation UniFi switching


UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Vendor Homepage

store.ui.com/collections/unifi-network-routing-switching/products/usw-pro-24

Model name

USW-PRO-24

Primary port count

24

10Base-T / 100Base-TX / 1000Base-T

24

SFP+

1

Switching capacity

88 Gbps

Forwarding rate

65.472 Mpps

Switching method

Store-and-forward

Activity

Yes

Link

Yes

Dimensions

442.4 x 285.4 x 43.7 mm

Units per Shipping Box

2

Shipping Box Depth

53.5 cm

Shipping Box Height

42 cm

Shipping Box Weight

11.1 kg

Shipping Box Width

26 cm

Unit Calculated Volume

0.02921 cubm

Product Net Weight

3.59 kg

Unit Calculated Weight

5.55 kg

Unit Box Width

0.12

Unit Box Length

0.52

Unit Box Height

0.29

Full Description Line

24x10Base-T / 100Base-TX / 1000Base-T|1xSFP+|Switching capacity 88 Gbps|Forwarding rate 65.472 Mpps|Switching method Store-and-forward|Activity|Link|Dimensions 442.4 x 285.4 x 43.7 mm|Product Net Weight 3.59 kg
