Mainboard|GIGABYTE|AMD A620|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|A620MS2H1.2

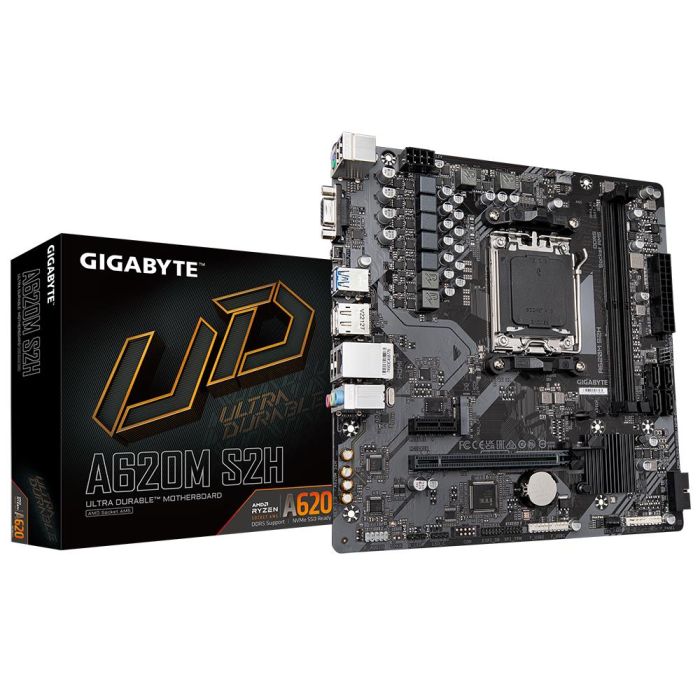

A620M S2H (rev. 1.2) - AMD Socket AM5:Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance:5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:GbE LAN
- Extended Connectivity:DP, HDMI, D-Sub
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

A620M S2H (rev. 1.2) - AMD Socket AM5:Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance:5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:GbE LAN
- Extended Connectivity:DP, HDMI, D-Sub
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage

www.gigabyte.com/Motherboard/A620M-S2H-rev-12

Model

A620M S2H 1.2

Chipset

AMD A620

Socket

SAM5

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

4400/4800/5200/5600/6000/6200/6400/6600/6800/7200 MHz

Memory slots

2

M.2

1

PCI-Express 3.0 1x

1

PCI-Express 4.0 16x

1

15pin D-sub

1

Audio port

3

DisplayPort

1

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

SATA

Yes

Integrated video

Depending on CPU

Integrated audio

Realtek ALC898

Integrated LAN

Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 10

Units per Shipping Box

10

Shipping Box Depth

57.5 cm

Shipping Box Height

28.4 cm

Shipping Box Weight

9.01 kg

Shipping Box Width

28.6 cm

Unit Calculated Volume

0.00467 cubm

Product Net Weight

0.5 kg

Unit Calculated Weight

0.901 kg

Unit Box Width

0.265

Unit Box Length

0.269

Unit Box Height

0.055

Full Description Line

AMD A620|SAM5|Micro-ATX|DDR5|7200/6800/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC898|LAN Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10

Category Code

MBA
